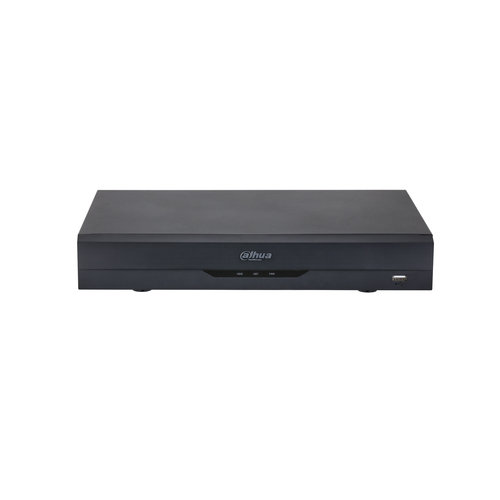

Dahua Technology DH-XVR5116H-4KL-I3 digital video recorder (DVR) Internal Black
Dahua Technology

DH-XVR5116H-4KL-I3 digital video recorder (DVR) Internal Black

Model DH-XVR5116H-4KL-I3

57 specifications
  • OSEmbedded LINUX
  • Weight1.23 kg
  • ColourBlack
  • Maximum video resolution3840 x 2160 pixels
  • Video input channels16 channels
  • Ethernet LANYes
See all specifications

Overview

OS
Embedded LINUX
Weight
1.23 kg
Colour
Black
Maximum video resolution
3840 x 2160 pixels
Video input channels
16 channels
Ethernet LAN
Yes
Brand
Dahua Technology
Model
DH-XVR5116H-4KL-I3
Part number
DH-XVR5116H-4KL-I3
Also known as
Dahua Technology DH-XVR5116H-4KL-I3 digital video recorder (DVR) Internal Black

Specifications

57 specifications in 9 groups

Performance

Maximum video resolution3840 x 2160 pixels
Audio formats supportedG.711 A-law, G.711 μ-law, PCM
Video compression formatsH.264, H.264+, H.265, H.265+
InternalYes
Backup functionYes
Video capturing speed30 fps
Video loss detectionYes
Video motion detectionYes
Analog signal format systemNTSC, PAL
Audio input channels1 channels
Audio output channels1.0 channels
Audio system2-way
Bit rate32 Kbit/s
Channels quantity32 channels
Dual stream supportYes
LED indicatorsHDD, Network, Power
Maximum frame rate60 fps
Multi-display modes1, 4, 8, 9, 16, 25, 36
Multi-display supportedYes
Operating system installedEmbedded LINUX
PTZ controlYes
Playback modesBackup selection, Fast, Full screen, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Product colourBlack
USB connectivityYes
Video streamingYes
Rack capacity1U

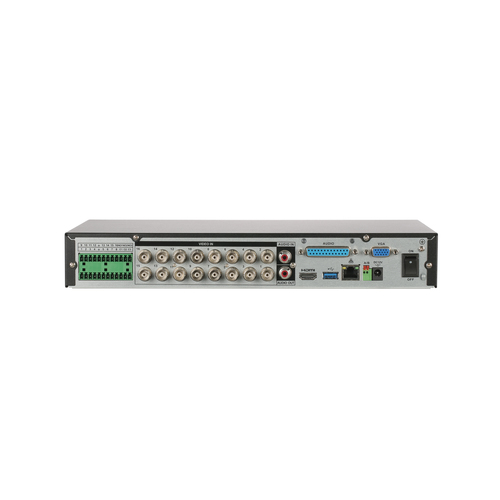

Ports & interfaces

Video input channels16 channels
Alarm input channels16
HDMI ports quantity1
VGA (D-Sub) output ports1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
RS-485 ports1
Relay outputs3

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet interface typeGigabit Ethernet
Supported network protocolsHTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P

Hard drive

Number of HDDs supported1
HDD interfaceSATA
Maximum HDD capacity16 TB

Processor

Built-in processorYes

Power

Power supply typeDC
DC voltage12 V
Power consumption (typical)15 W

Weight & dimensions

Width325 mm
Depth257.1 mm
Height55 mm
Weight1.23 kg

Packaging data

Package width372 mm
Package depth117 mm
Package height308 mm
Package weight2.11 kg

Operational conditions

Operating relative humidity (H-H)0 - 90%
Operating temperature (T-T)-10 - 55 °C
Storage relative humidity (H-H)0 - 90%
Storage temperature (T-T)-20 - 70 °C
