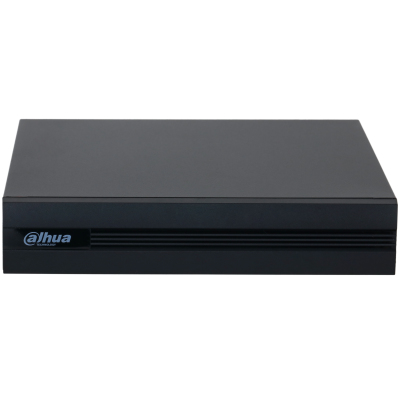

Dahua Technology XVR1B08-I/8-B2A21N-U Black
Dahua Technology

XVR1B08-I/8-B2A21N-U Black

Model XVR1B08-I/8-B2A21N-UPart no. DHT0260007

77 specifications
  • Resolution1920 x 1080 pixels
  • OSEmbedded LINUX
  • Weight560 g
  • ColourBlack
  • Video input channels8 channels
  • Ethernet LANYes
See all specifications

Overview

Resolution
1920 x 1080 pixels
OS
Embedded LINUX
Weight
560 g
Colour
Black
Video input channels
8 channels
Ethernet LAN
Yes
Brand
Dahua Technology
Model
XVR1B08-I/8-B2A21N-U
Part number
DHT0260007
Also known as
Dahua Technology XVR1B08-I/8-B2A21N-U Black

Specifications

77 specifications in 12 groups

Performance

Maximum video resolution1920 x 1080 pixels
Video compression formatsH.265, H.264
Video recording trigger modesAlarm, Motion detection
Backup functionYes
Video capturing speed (NTSC)30 fps
Video capturing speed (PAL)30 fps
Video loss detectionYes
Video motion detectionYes
Audio bitrate64 Kbit/s
Audio input channels1 channels
Audio output channels1.0 channels
Audio streamingYes
Audio system1-way
Bit rate32 Kbit/s
Channels quantity10 channels
ClassDesktop
Display1 HDMI, 1 VGA
Dual stream supportYes
Event loggingYes
Input bandwidth40 Mbit/s
Maximum frame rate30 fps
Multi-display modes1, 4, 8, 9, 16
Multi-display supportedYes
Network connection typeEthernet port, RJ-45
Number of simultaneously playbacked channels1 channels
Operating system installedEmbedded LINUX
Playback modesInstant, General, Event, Tag, Smart
Playback resolutions supported1920 × 1080, 1280 × 1024, 1280 × 720
Product colourBlack
Total bandwidth40 Mbit/s
USB connectivityYes
Video output - digitalHDMI: 1920 × 1080, 1280 × 1024, 1280 × 720; VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Video streamingYes
Compatible operating systemsEmbedded Linux

Video

Video resolutions1920 x 1080,1280 x 1024,1280 x 720

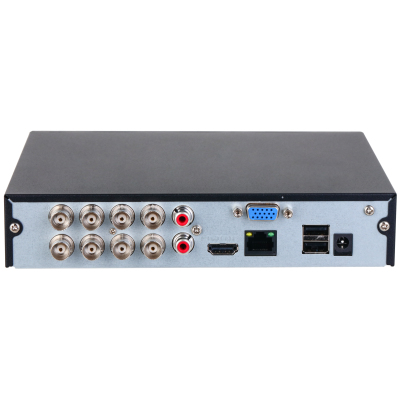

Ports & interfaces

Video input channels8 channels
BNC input ports8
HDMI ports quantity1
VGA (D-Sub) output ports1
Audio input1-channel RCA | 8-channel BNC (Coaxial Audio)
Audio output1-channel RCA
USB 2.0 ports quantity2
Video in8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Video out1 HDMI, 1 VGA
Number of HDMI outputs1

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet interface typeFast Ethernet
Ethernet LAN data rates100 Mbit/s
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Hard drive

HDD interfaceSATA
Maximum HDD capacity6 TB
Supported HDD interfacesSerial ATA
Media types supportedUSB device and network

Processor

Built-in processorYes

Power

Power supply typeDC
AC input voltage12 DC
DC voltage12 V
DC current (max)1.5 A
Power consumption (max)7 W
Power consumption (typical)7 W
Power requirements12 VDC, 1.5 A

Weight & dimensions

Width197 mm
Depth202.9 mm
Height41.5 mm
Weight560 g

Packaging data

Package width332 mm
Package depth64 mm
Package height240 mm
Package weight960 g

Display

Built-in displayYes
Display resolution1920 x 1080 pixels

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-10 - 45 °C
Storage temperature (T-T)-20 - 60 °C

Technical details

Compliance certificatesCE
Package volume240 cm³
