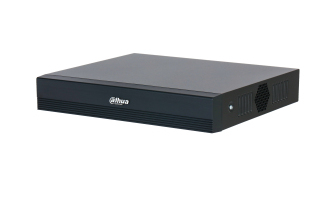

Dahua Technology XVR1B16H-I/T digital video recorder (DVR) Black
Dahua Technology

XVR1B16H-I/T digital video recorder (DVR) Black

Model XVR1B16H-I/T

60 specifications
  • Resolution1920 x 1080 pixels
  • OSLinux
  • Weight590 g
  • ColourBlack
  • Maximum video resolution3840 x 2160 pixels
  • Video input channels24 channels
See all specifications

Overview

Resolution
1920 x 1080 pixels
OS
Linux
Weight
590 g
Colour
Black
Maximum video resolution
3840 x 2160 pixels
Video input channels
24 channels
Brand
Dahua Technology
Model
XVR1B16H-I/T
Part number
XVR1B16H-I/T
Also known as
Dahua Technology XVR1B16H-I/T digital video recorder (DVR) Black

Specifications

60 specifications in 10 groups

Performance

Maximum video resolution3840 x 2160 pixels
Audio formats supportedPCM, G.711u, G.711 A-law
Video compression formatsH.264, H.264+, H.265, H.265+
Backup functionYes
Video capturing speed60 fps
Video capturing speed (NTSC)60 fps
Video capturing speed (PAL)30 fps
Video loss detectionYes
Video motion detectionYes
Analog signal format systemNTSC, PAL
Aspect ratio16:9
Channels quantity16 channels
Dual stream supportYes
Event loggingYes
Maximum frame rate60 fps
Maximum recording time1 h
Multi-display modes4, 1, 8, 9, 16
Multi-display supportedYes
Network connection typeRJ-45
Operating system installedLinux
PTZ controlYes
Pause functionYes
Playback modesFast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Playback resolutions supported1920×1080, 1280×1024, 1280×720
Product colourBlack
USB connectivityYes
Rack capacity1U
CertificationCE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014

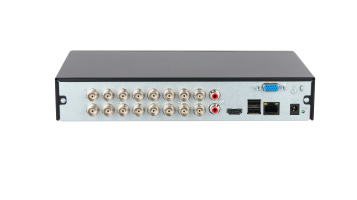

Ports & interfaces

Video input channels24 channels
BNC input ports4
BNC output ports1
HDMI ports quantity1
VGA (D-Sub) output ports1
Audio input1
Audio output1
USB 2.0 ports quantity2

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet interface typeFast Ethernet
Ethernet LAN data rates10,100 Mbit/s
Number of users128 user(s)
Supported network protocolsHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search

Hard drive

Number of HDDs supported1

Power

Power supply typeDC
DC voltage12 V
Power consumption (typical)10 W

Weight & dimensions

Width197 mm
Depth204.3 mm
Height41.5 mm
Weight590 g

Packaging data

Package width332 mm
Package depth64 mm
Package height240 mm
Package weight1.14 kg

Packaging content

Cables includedDC
Quick start guideYes

Display

Display resolution1920 x 1080 pixels

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-10 - 45 °C
Storage temperature (T-T)-20 - 60 °C
