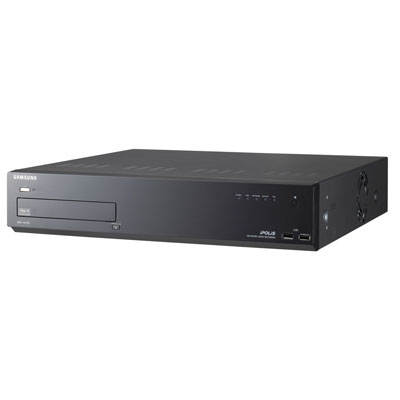

SRN-1670D digital video recorder (DVR) Black
Model SRN-1670DEAN 8801089048349
24 specifications
- Resolution704 x 576 pixels
- OSEmbedded LINUX
- Weight7.5 kg
- ColourBlack
- Video compression formatsH.264, MPEG, MPEG4
- HDMI ports quantity1
Overview
- Resolution
- 704 x 576 pixels
- OS
- Embedded LINUX
- Weight
- 7.5 kg
- Colour
- Black
- Video compression formats
- H.264, MPEG, MPEG4
- HDMI ports quantity
- 1
- Brand
- Samsung
- Category
- Digital Video Recorders (DVR)
- Model
- SRN-1670D
- Part number
- SRN-1670D
- EAN / UPC
- 8801089048349
- Also known as
- Samsung SRN-1670D digital video recorder (DVR) Black
Specifications
24 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Video compression formats | H.264, MPEG, MPEG4 |
| Analog signal format system | NTSC, PAL |
| Channels quantity | 16 channels |
| Operating system installed | Embedded LINUX |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 1 |
| Audio output | 1 |
| USB 2.0 ports quantity | 3 |
| eSATA ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet interface type | Gigabit Ethernet |
| Supported network protocols | TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP |
Optical drive
| Specification | Value |
|---|---|
| Optical drive included | Yes |
| Optical drive type | DVD-RW |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 60 W |
| Power requirements | 100 - 240V AC ±10%, 50/60Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 430 x 88 mm |
| Weight | 7.5 kg |
Display
| Specification | Value |
|---|---|
| Display resolution | 704 x 576 pixels |
| Display frame rate | 480 fps |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 85% |
| Operating temperature (T-T) | 0 - 40 °C |
