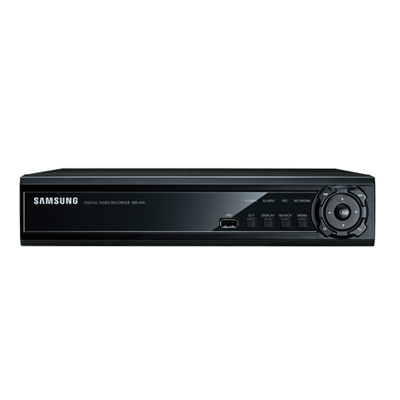

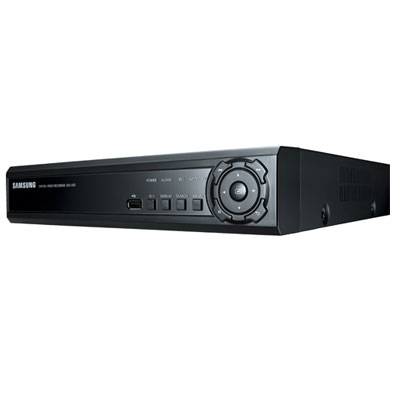

SRD-450 digital video recorder (DVR)
Model SRD-450EAN 8801089068842
22 specifications
- Resolution704 x 576 pixels
- OSEmbedded LINUX
- Weight1.84 kg
- Video compression formatsAVI, H.264
- BNC input ports1
- Optical drive includedYes
Overview
- Resolution
- 704 x 576 pixels
- OS
- Embedded LINUX
- Weight
- 1.84 kg
- Video compression formats
- AVI, H.264
- BNC input ports
- 1
- Optical drive included
- Yes
- Brand
- Samsung
- Category
- Digital Video Recorders (DVR)
- Model
- SRD-450
- Part number
- SRD-450
- EAN / UPC
- 8801089068842
- Also known as
- Samsung SRD-450 digital video recorder (DVR)
Specifications
22 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Video compression formats | AVI, H.264 |
| Analog signal format system | NTSC, PAL |
| Channels quantity | 4 channels |
| Operating system installed | Embedded LINUX |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC input ports | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Supported network protocols | TCP/IP, DHCP, DDNS, NTP, HTTP, RTSP |
Optical drive
| Specification | Value |
|---|---|
| Optical drive included | Yes |
| Optical drive type | DVD-RW |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 18.2 W |
| Power requirements | 12V DC, 3.3A, 100-240V AC, 50/60Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 290 x 224.3 x 60 mm |
| Weight | 1.84 kg |
Display
| Specification | Value |
|---|---|
| Display resolution | 704 x 576 pixels |
| Display frame rate | 120 fps |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 85% |
| Operating temperature (T-T) | 0 - 40 °C |
