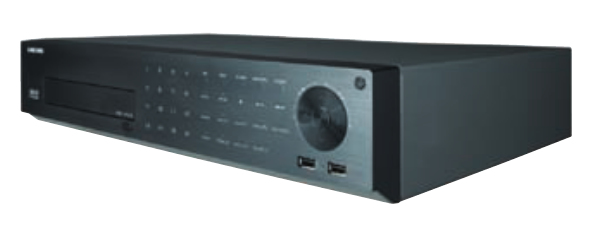

SRD-1653D, 1TB
Model SRD-1653D, 1TBPart no. SRD-1653D-1TBEAN 6950207319297
29 specifications
- Resolution928 x 480 pixels
- Storage1 TB
- Weight5.2 kg
- ColourBlack
- Video compression formatsH.264
- HDMI ports quantity1
Overview
- Resolution
- 928 x 480 pixels
- Storage
- 1 TB
- Weight
- 5.2 kg
- Colour
- Black
- Video compression formats
- H.264
- HDMI ports quantity
- 1
- Brand
- Samsung
- Category
- Digital Video Recorders (DVR)
- Model
- SRD-1653D, 1TB
- Part number
- SRD-1653D-1TB
- EAN / UPC
- 6950207319297
- Also known as
- Samsung SRD-1653D, 1TB Black
Specifications
29 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Video compression formats | H.264 |
| Video loss detection | Yes |
| Analog signal format system | NTSC, PAL |
| Channels quantity | 16 channels |
| LED indicators | Yes |
| Motion sensor | Yes |
| Playback resolutions supported | NTSC : 928 x 480, 704 x 480 / PAL : 928 x 576, 704 x 576 |
| Product colour | Black |
| Supported protocols | RTP, RTSP, HTTP, CGI |
| Total storage capacity | 1 TB |
| USB connectivity | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| eSATA ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Supported network protocols | TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 4 |
| HDD interface | Serial ATA |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 60 W |
| Power requirements | 100-240 VAC, 50-60Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 246.8 x 88 mm |
| Weight | 5.2 kg |
Display
| Specification | Value |
|---|---|
| Display resolution | 928 x 480 pixels |
| Display frame rate | 480 fps |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 85% |
| Operating temperature (T-T) | 0 - 40 °C |
