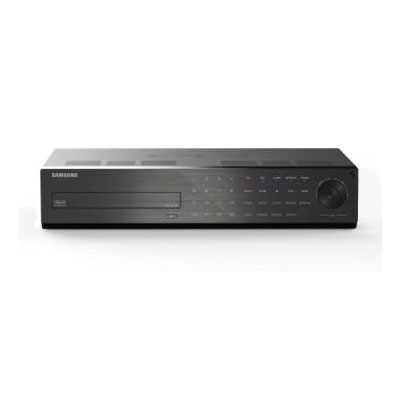

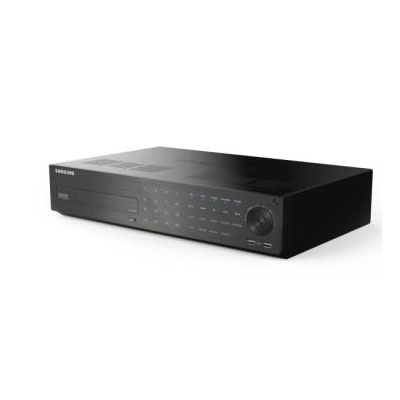

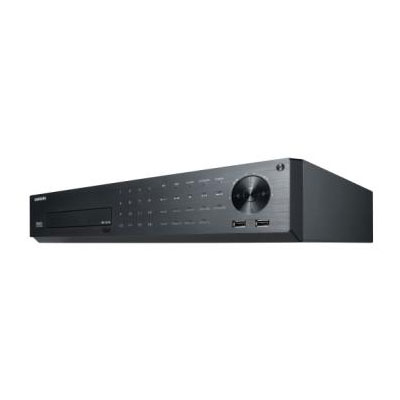

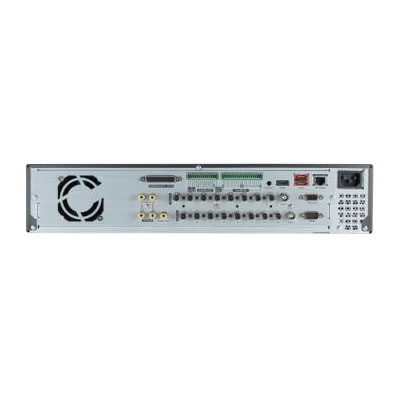

Samsung SRD-1653D digital video recorder (DVR) Black

Samsung SRD-1653D digital video recorder (DVR) Black

Model SRD-1653DEAN 887406003039

31 specifications

Resolution960 x 480 pixels
OSEmbedded LINUX
Weight5.2 kg
ColourBlack
Video compression formatsH.264
HDMI ports quantity1

See all specifications

Overview

Resolution: 960 x 480 pixels
OS: Embedded LINUX
Weight: 5.2 kg
Colour: Black
Video compression formats: H.264
HDMI ports quantity: 1

Brand: Samsung
Category: Digital Video Recorders (DVR)
Model: SRD-1653D
Part number: SRD-1653D
EAN / UPC: 887406003039, 6950207319280
Also known as: Samsung SRD-1653D digital video recorder (DVR) Black

Specifications

31 specifications in 9 groups

Performance

Specification	Value
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Channels quantity	16 channels
Maximum recording time	6 h
Operating system installed	Embedded LINUX
Playback modes	Fast Backward, Fast forward, Slow
Product colour	Black
Supported protocols	Samsung-T/E, Pelco-D/P / Panasonic / Phillips / AD / DIAMOND / ERNA / KALATEL / VCL TP / VICON / ELMO / GE

Ports & interfaces

Specification	Value
HDMI ports quantity	1
VGA (D-Sub) output ports	1
Audio input	16
Audio output	1
USB 2.0 ports quantity	2
RS-232 ports	1
RS-485 ports	1
eSATA ports quantity	2

Network

Specification	Value
Ethernet LAN (RJ-45) ports	1
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP

Hard drive

Specification	Value
Number of HDDs supported	4
HDD interface	Serial ATA

Optical drive

Specification	Value
Optical drive included	Yes
Optical drive type	DVD-RW

Power

Specification	Value
Power consumption (max)	60 W
Power requirements	100 - 240 V AC ±10%; 50/60 Hz

Weight & dimensions

Specification	Value
Dimensions (WxDxH)	440 x 246.8 x 88 mm
Weight	5.2 kg

Display

Specification	Value
Display resolution	960 x 480 pixels
Display frame rate	480 fps

Operational conditions

Specification	Value
Operating relative humidity (H-H)	20 - 85%
Operating temperature (T-T)	0 - 40 °C
