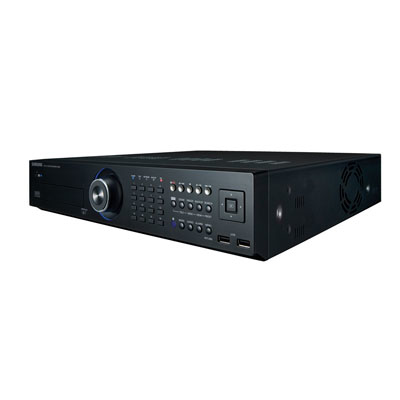

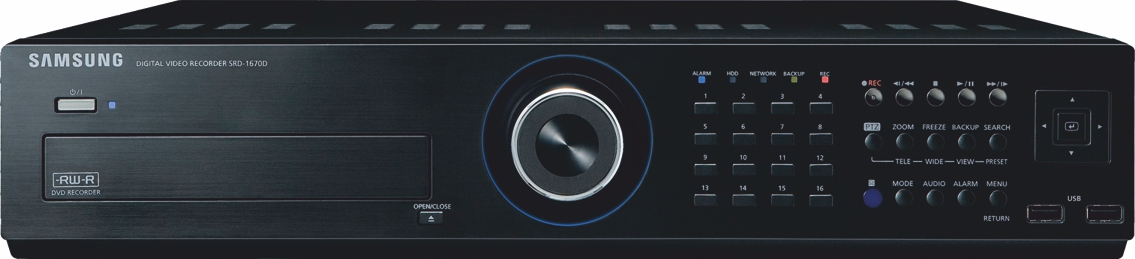

SRD-1650D digital video recorder (DVR) Black
Model SRD-1650DEAN 6950207317514
27 specifications
- Resolution704 x 576 pixels
- Weight7.5 kg
- ColourBlack
- Analog signal format systemNTSC, PAL
- HDMI ports quantity1
- Number of HDDs supported5
Overview
- Resolution
- 704 x 576 pixels
- Weight
- 7.5 kg
- Colour
- Black
- Analog signal format system
- NTSC, PAL
- HDMI ports quantity
- 1
- Number of HDDs supported
- 5
- Brand
- Samsung
- Category
- Digital Video Recorders (DVR)
- Model
- SRD-1650D
- Part number
- SRD-1650D
- EAN / UPC
- 6950207317514
- Also known as
- Samsung SRD-1650D digital video recorder (DVR) Black
Specifications
27 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL |
| Maximum recording time | 6 h |
| Product colour | Black |
| Supported protocols | TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, Samsung-T/E, Pelco-D/P, AD, VCL TP, Vicon PTZ, CCVC, Pelco-C |
| Compatible operating systems | Linux |

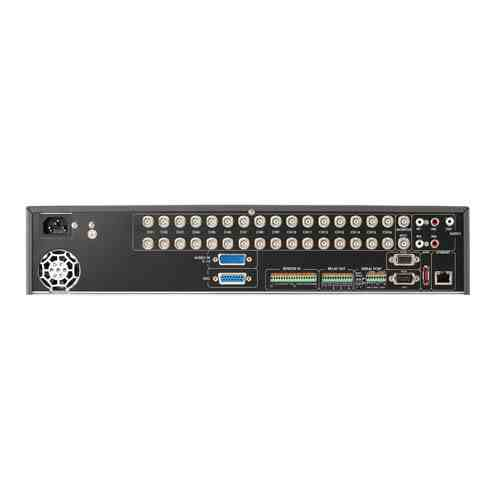

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 16 |
| Audio output | 1 |
| USB 2.0 ports quantity | 3 |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
| eSATA ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | RTSP/RTP (UDP), CGI, HTTP |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 5 |
| HDD interface | Serial ATA |
Optical drive
| Specification | Value |
|---|---|
| Optical drive included | Yes |
| Optical drive type | DVD-RW |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 60 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 426.8 x 88 mm |
| Weight | 7.5 kg |
Display
| Specification | Value |
|---|---|
| Display resolution | 704 x 576 pixels |
| Display frame rate | 480 fps |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 20 - 85 °C |
