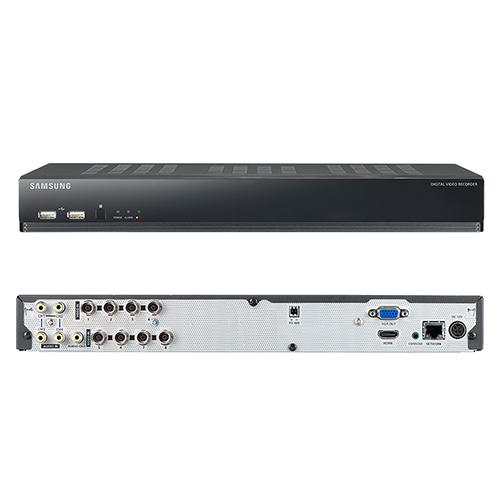

Samsung SDR-4100 digital video recorder (DVR) Black
Model SDR-4100EAN 849688000212
25 specifications
- Resolution704 x 480 pixels
- Storage500 GB
- OSEmbedded LINUX
- Weight1.6 kg
- ColourBlack
- Video compression formatsH.264
Overview
- Resolution
- 704 x 480 pixels
- Storage
- 500 GB
- OS
- Embedded LINUX
- Weight
- 1.6 kg
- Colour
- Black
- Video compression formats
- H.264
- Brand
- Samsung
- Category
- Digital Video Recorders (DVR)
- Model
- SDR-4100
- Part number
- SDR-4100
- EAN / UPC
- 849688000212, 8496880002128
- Also known as
- Samsung SDR-4100 digital video recorder (DVR) Black
Specifications
25 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Video compression formats | H.264 |
| Operating system installed | Embedded LINUX |
| Pause function | Yes |
| Product colour | Black |
| Supported protocols | RTP, RTSP, HTTP, CGI |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC input ports | 8 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 4 |
| Audio output | 1 |
| USB 2.0 ports quantity | 2 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
| HDD interface | Serial ATA |
| HDD capacity | 500 GB |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 48 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 360 x 160 x 44 mm |
| Weight | 1.6 kg |
Display
| Specification | Value |
|---|---|
| Display resolution | 704 x 480 pixels |
| Display frame rate | 240 fps |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 85% |
| Operating temperature (T-T) | 0 - 40 °C |
