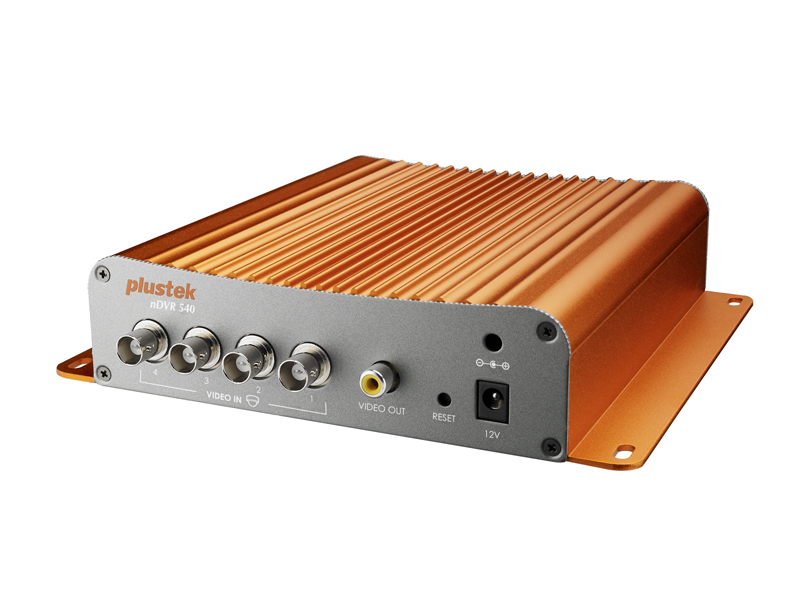

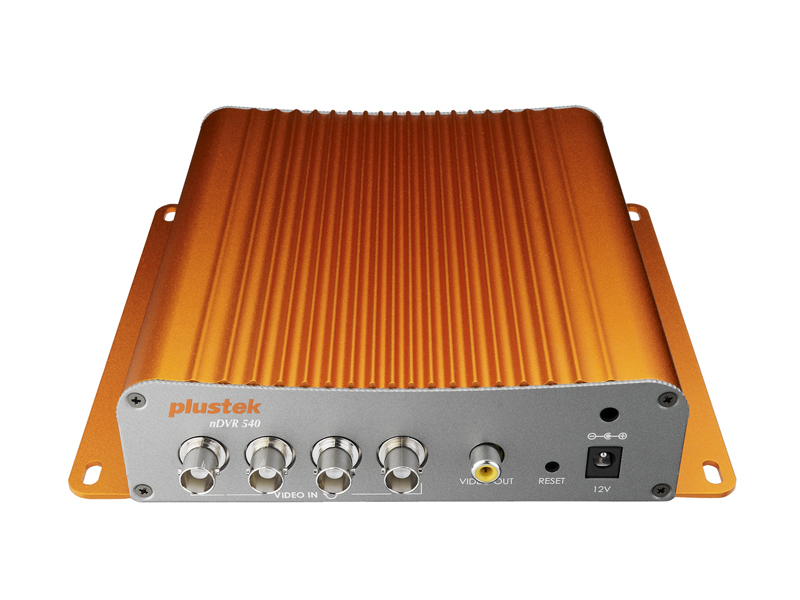

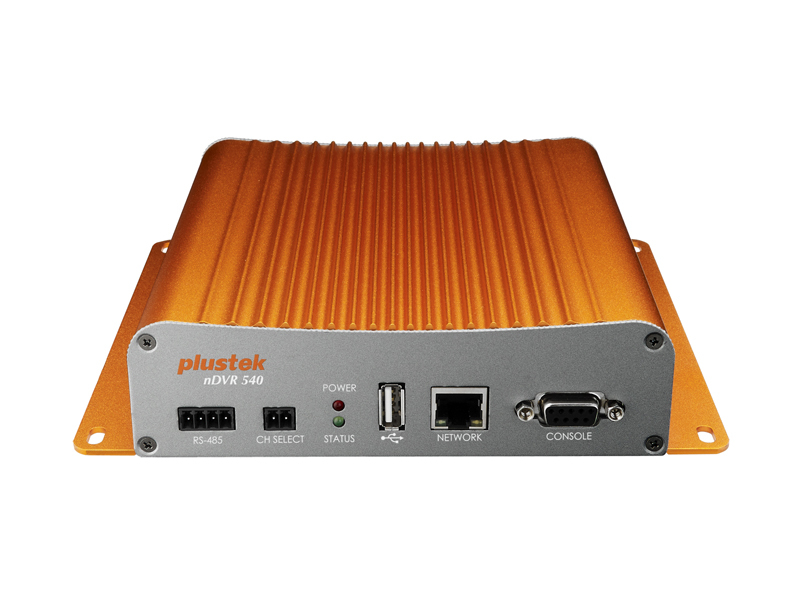

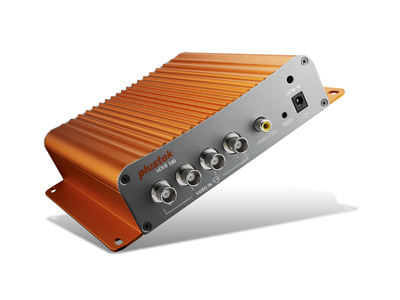

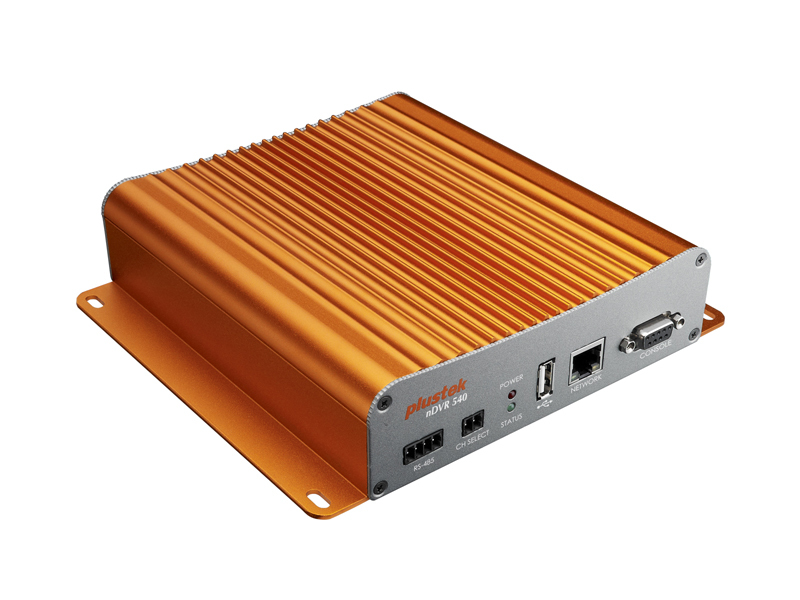

Plustek nDVR 540
Plustek

nDVR 540

Model nDVR 540Part no. 60-EH1-A1M713-R

21 specifications
  • Weight900 g
  • Video compression formatsH.264, M-JPEG
  • BNC input ports4
  • Ethernet LAN (RJ-45) ports1
  • Power requirements12 Vdc/ 1.5 A, input: 8 ~ 16 Vdc
  • Dimensions (WxDxH)152 x 170 x 43 mm
See all specifications

Overview

Weight
900 g
Video compression formats
H.264, M-JPEG
BNC input ports
4
Ethernet LAN (RJ-45) ports
1
Power requirements
12 Vdc/ 1.5 A, input: 8 ~ 16 Vdc
Dimensions (WxDxH)
152 x 170 x 43 mm
Brand
Plustek
Model
nDVR 540
Part number
60-EH1-A1M713-R
Also known as
Plustek nDVR 540

Specifications

21 specifications in 7 groups

Performance

Video compression formatsH.264, M-JPEG
Video capturing speed120 fps
Analog signal format systemNTSC, PAL
Motion sensorYes
Playback resolutions supportedNTSC: D1 (704x480), CIF(352x240), QCIF(176x120) PAL: D1 (704x576), CIF(352x288), QCIF(176x144)
CertificationCE, FCC, RoHS
Compatible operating systemsMicrosoft Windows XP or above

Ports & interfaces

BNC input ports4
USB 2.0 ports quantity1
RS-485 ports1

Network

Ethernet LAN (RJ-45) ports1
Ethernet interface typeGigabit Ethernet
Supported network protocolsTCP/ IP, DHCP Client, PPPoE, HTTP, DDNS Client, NTP, FTP, DNS, SMTP, UDP, RTP (TCP, UDP/ uncast), UPnP, IPv4

Hard drive

Number of HDDs supported1
HDD interfaceSerial ATA
HDD size2.5"

Power

Power requirements12 Vdc/ 1.5 A, input: 8 ~ 16 Vdc

Weight & dimensions

Dimensions (WxDxH)152 x 170 x 43 mm
Weight900 g

Operational conditions

Operating relative humidity (H-H)20 - 80%
Operating temperature (T-T)-20 - 65 °C
