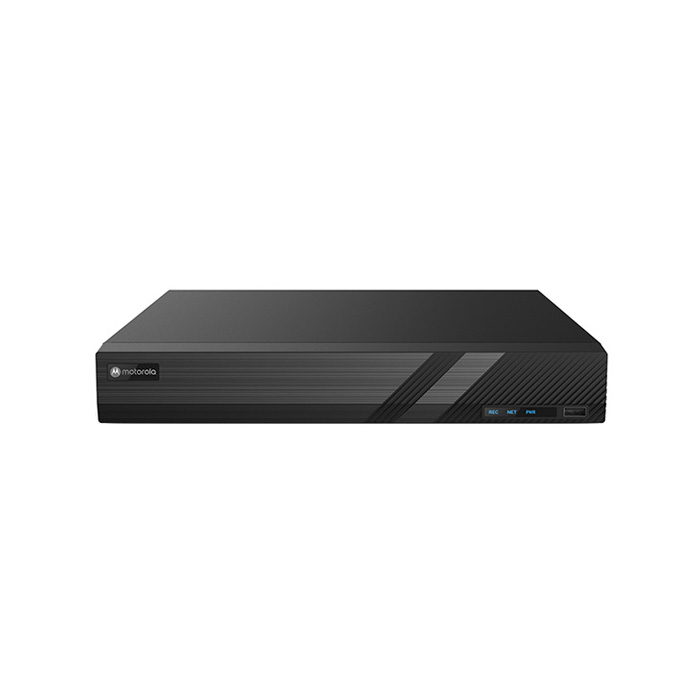

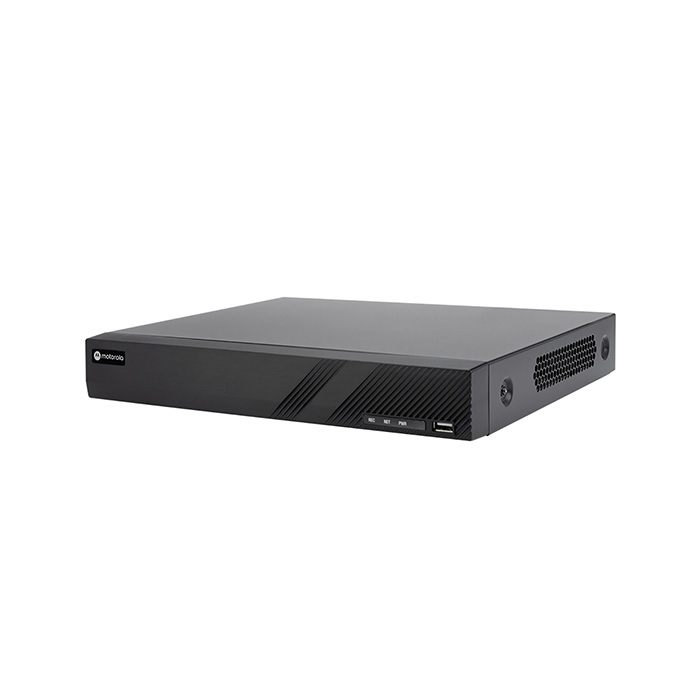

MTD161F0012 digital video recorder (DVR) Black
Model MTD161F0012
41 specifications
- OSEmbedded LINUX
- ColourBlack
- Maximum video resolution1280 x 1936 pixels
- Video input channels16 channels
- Ethernet LANYes
- Number of HDDs supported2
Overview
- OS
- Embedded LINUX
- Colour
- Black
- Maximum video resolution
- 1280 x 1936 pixels
- Video input channels
- 16 channels
- Ethernet LAN
- Yes
- Number of HDDs supported
- 2
- Brand
- Motorola
- Category
- Digital Video Recorders (DVR)
- Model
- MTD161F0012
- Part number
- MTD161F0012
- Also known as
- Motorola MTD161F0012 digital video recorder (DVR) Black
Specifications
41 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 1280 x 1936 pixels |
| Video compression formats | H.264, H.265 |
| Video capturing speed (NTSC) | 30 fps |
| Video capturing speed (PAL) | 25 fps |
| Video motion detection | Yes |
| Audio system | 2-way |
| Channels quantity | 16 channels |
| Dual stream support | Yes |
| Operating system installed | Embedded LINUX |
| Product colour | Black |
| USB connectivity | Yes |

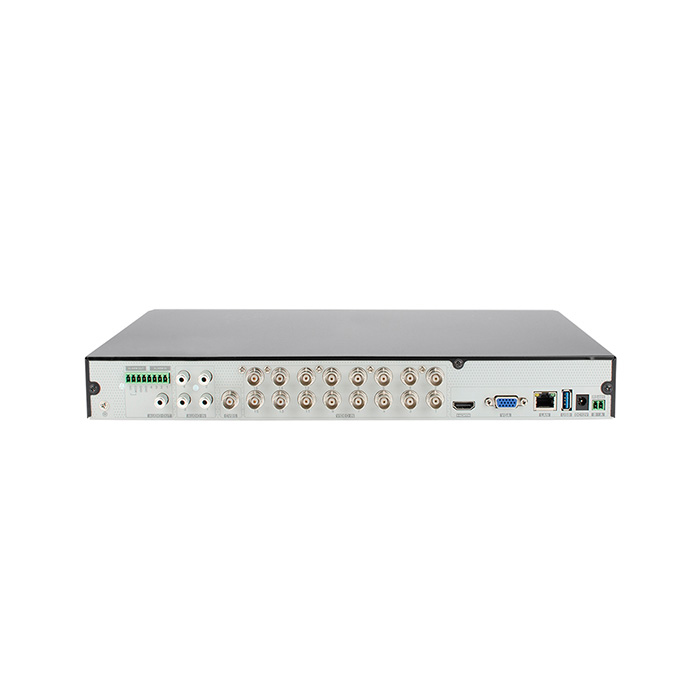

Ports & interfaces
| Specification | Value |
|---|---|
| Video input channels | 16 channels |
| Alarm input channels | 16 |
| Alarm output channels | 4 |
| BNC input ports | 16 |
| BNC output ports | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 8 |
| Audio output | 1 |
| USB 2.0 ports quantity | 2 |
| RS-485 ports | 1 |
| eSATA ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Supported network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 2 |
| HDD interface | SATA |
| Maximum HDD capacity | 8 TB |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| AC input voltage | 100 - 240 V |
| DC voltage | 12 V |
| Power consumption (typical) | 15 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 380 mm |
| Depth | 268 mm |
| Height | 52 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 50 °C |
