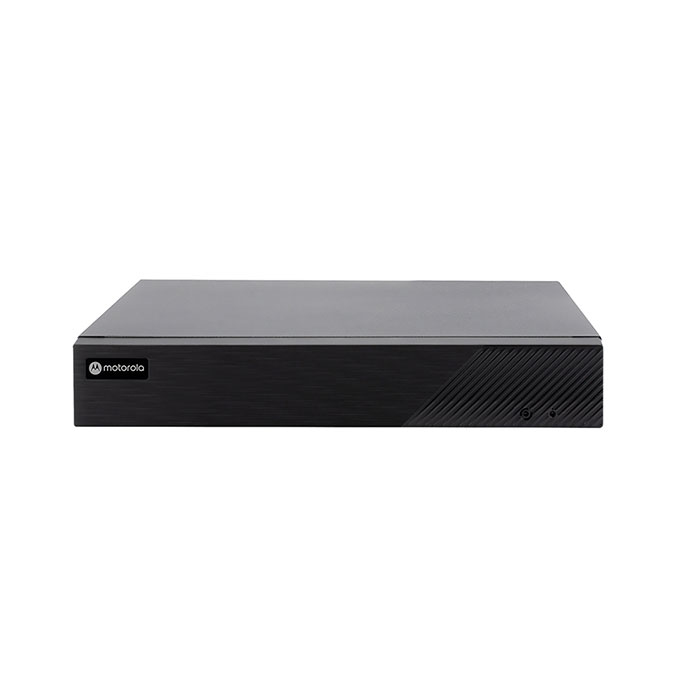

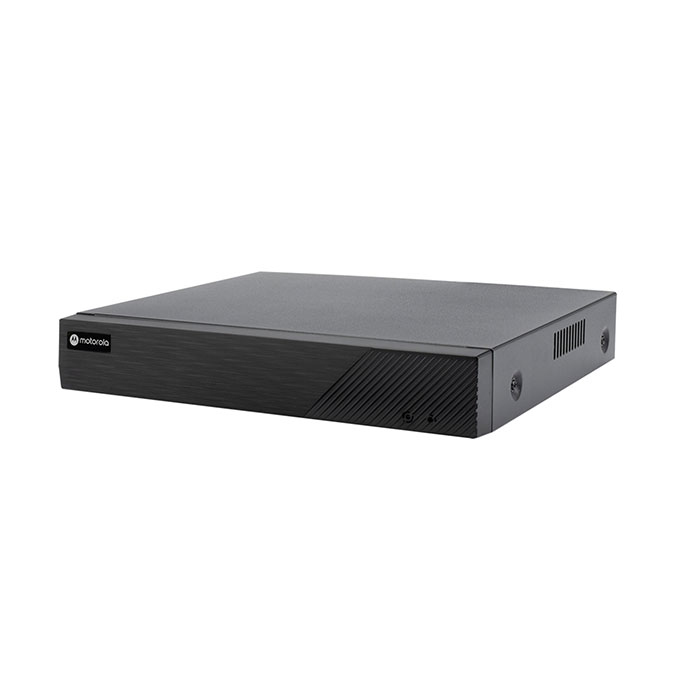

MTD041F0011 digital video recorder (DVR) Black
Model MTD041F0011
27 specifications
- ColourBlack
- Maximum video resolution1920 x 1080 pixels
- BNC input ports4
- Ethernet LANYes
- Number of HDDs supported1
- Power supply typeAC
Overview
- Colour
- Black
- Maximum video resolution
- 1920 x 1080 pixels
- BNC input ports
- 4
- Ethernet LAN
- Yes
- Number of HDDs supported
- 1
- Power supply type
- AC
- Brand
- Motorola
- Category
- Digital Video Recorders (DVR)
- Model
- MTD041F0011
- Part number
- MTD041F0011
- Also known as
- Motorola MTD041F0011 digital video recorder (DVR) Black
Specifications
27 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Video compression formats | H.264, H.265 |
| Audio input channels | 1 channels |
| Channels quantity | 4 channels |
| Product colour | Black |

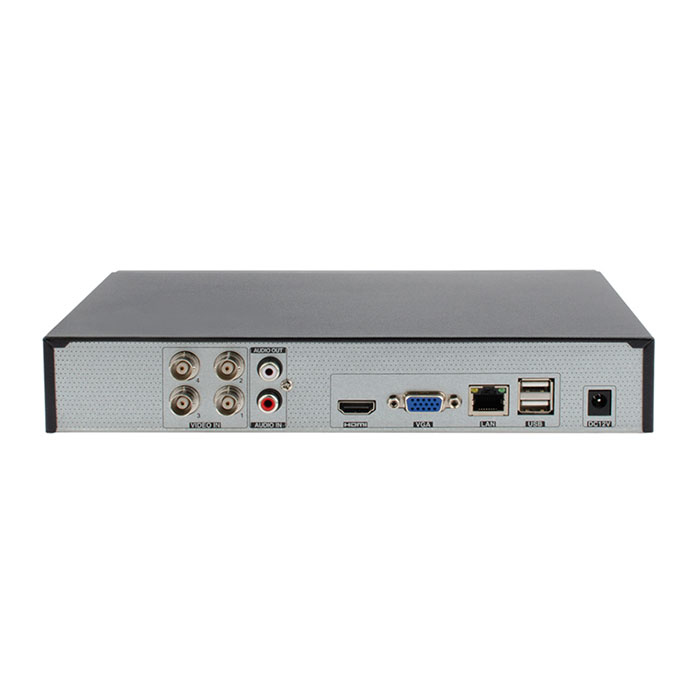

Ports & interfaces
| Specification | Value |
|---|---|
| BNC input ports | 4 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 1 |
| Audio output | 1 |
| USB 2.0 ports quantity | 2 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Fast Ethernet |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
| HDD interface | SATA |
| Maximum HDD capacity | 6 TB |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| AC input voltage | 100 - 240 V |
| DC voltage | 12 V |
| Power consumption (typical) | 5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 255 mm |
| Depth | 233 mm |
| Height | 42 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 50 °C |
