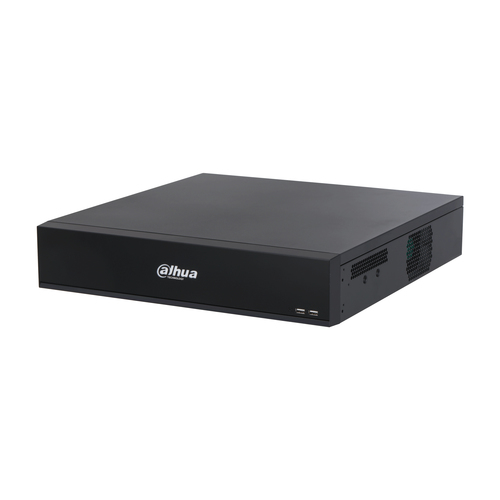

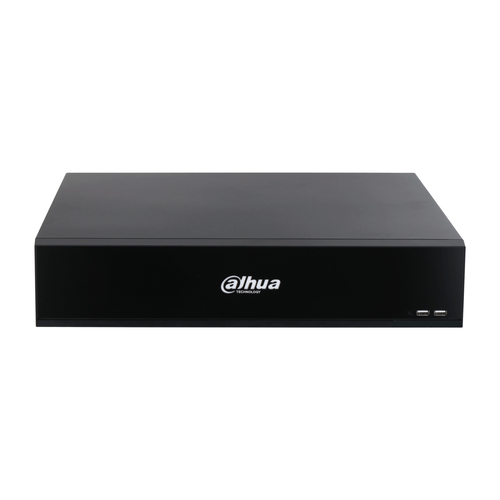

XVR7816S-4K-I3 Black
Model XVR7816S-4K-I3Part no. DH-XVR7816S-4K-I3EAN 6923172547941
42 specifications
- OSEmbedded LINUX
- Weight6.9 kg
- ColourBlack
- Maximum video resolution3840 x 2160 pixels
- Alarm input channels16
- Ethernet LANYes
Overview
- OS
- Embedded LINUX
- Weight
- 6.9 kg
- Colour
- Black
- Maximum video resolution
- 3840 x 2160 pixels
- Alarm input channels
- 16
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- XVR7816S-4K-I3
- Part number
- DH-XVR7816S-4K-I3
- EAN / UPC
- 6923172547941
- Also known as
- Dahua Technology XVR7816S-4K-I3 Black
Specifications
42 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Audio formats supported | G.711 A-law, G.711 μ-law, PCM |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Internal | No |
| Video capturing speed | 60 fps |
| Video loss detection | Yes |
| Video motion detection | Yes |
| Channels quantity | 16 channels |
| Operating system installed | Embedded LINUX |
| PTZ control | Yes |
| Playback modes | Tag, Event, General, Instant, Smart |
| Product colour | Black |
| Rack capacity | 2U |

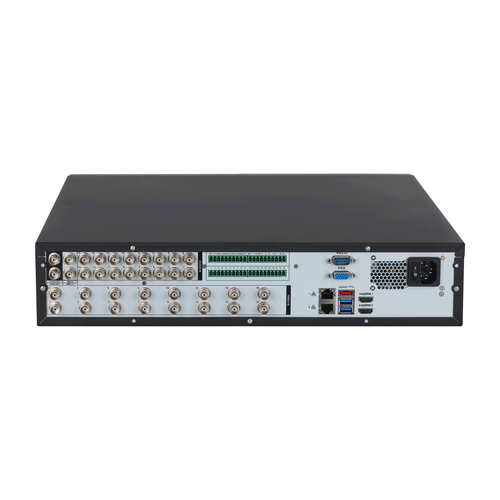

Ports & interfaces
| Specification | Value |
|---|---|
| Alarm input channels | 16 |
| Alarm output channels | 6 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 16 |
| Audio output | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
| eSATA ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet interface type | Gigabit Ethernet |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 8 |
| HDD interface | SATA |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 30 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 439.9 mm |
| Depth | 455.6 mm |
| Height | 94.9 mm |
| Weight | 6.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 570 mm |
| Package depth | 570 mm |
| Package height | 226 mm |
| Package weight | 9.5 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
