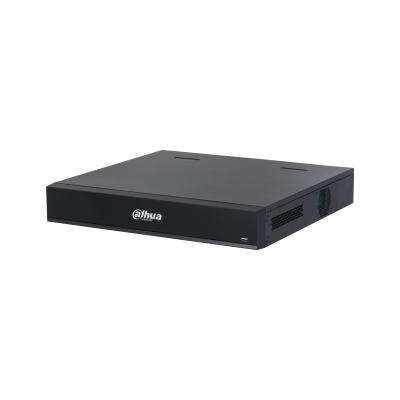

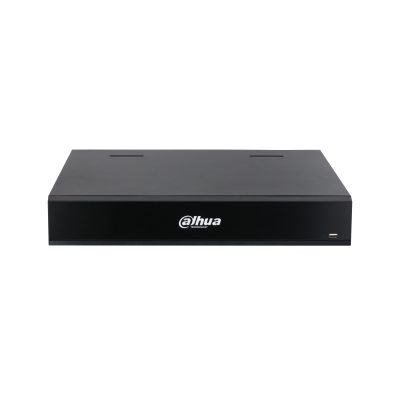

XVR7416L-4K-I2 Black
Model XVR7416L-4K-I2Part no. DH-XVR7416L-4K-I2EAN 6939554942617
39 specifications
- OSEmbedded LINUX
- Weight4.9 kg
- ColourBlack
- Audio formats supportedG.711 A-law, G.711 μ-law, PCM
- Alarm input channels16
- Ethernet LANYes
Overview
- OS
- Embedded LINUX
- Weight
- 4.9 kg
- Colour
- Black
- Audio formats supported
- G.711 A-law, G.711 μ-law, PCM
- Alarm input channels
- 16
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- XVR7416L-4K-I2
- Part number
- DH-XVR7416L-4K-I2
- EAN / UPC
- 6939554942617
- Also known as
- Dahua Technology XVR7416L-4K-I2 Black
Specifications
39 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Audio formats supported | G.711 A-law, G.711 μ-law, PCM |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Video loss detection | Yes |
| Video motion detection | Yes |
| Bit rate | 64 Kbit/s |
| Channels quantity | 16 channels |
| Operating system installed | Embedded LINUX |
| Product colour | Black |
| USB connectivity | Yes |
| Rack capacity | 1.5U |
| Certification | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 |
Ports & interfaces
| Specification | Value |
|---|---|
| Alarm input channels | 16 |
| Alarm output channels | 6 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 16 |
| Audio output | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Supported network protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 4 |
| HDD interface | SATA |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 30 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 416 mm |
| Depth | 440 mm |
| Height | 76 mm |
| Weight | 4.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 7.1 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
