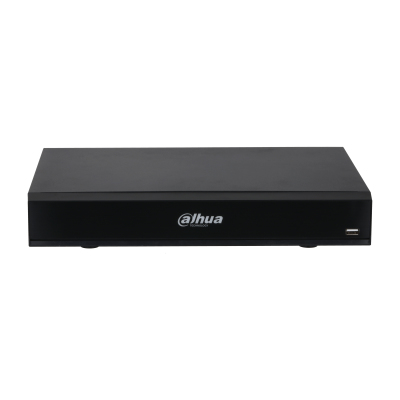

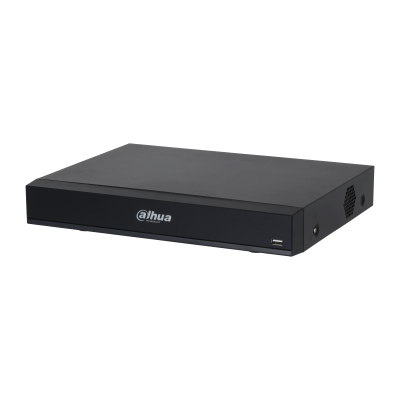

XVR7104HE-4K-I3 digital video recorder (DVR) Black
Model XVR7104HE-4K-I3
27 specifications
- OSEmbedded LINUX
- Weight1.2 kg
- ColourBlack
- Maximum video resolution1920 x 1080 pixels
- HDMI ports quantity1
- Ethernet LANYes
Overview
- OS
- Embedded LINUX
- Weight
- 1.2 kg
- Colour
- Black
- Maximum video resolution
- 1920 x 1080 pixels
- HDMI ports quantity
- 1
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- XVR7104HE-4K-I3
- Part number
- XVR7104HE-4K-I3
- Also known as
- Dahua Technology XVR7104HE-4K-I3 digital video recorder (DVR) Black
Specifications
27 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Audio formats supported | G.711 A-law, G.711 μ-law, PCM |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Bit rate | 64 Kbit/s |
| Channels quantity | 4 channels |
| Operating system installed | Embedded LINUX |
| Product colour | Black |

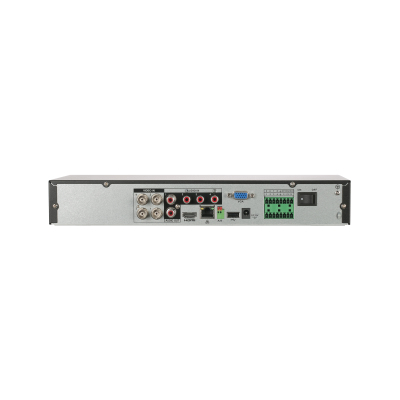

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
Power
| Specification | Value |
|---|---|
| DC voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 325 mm |
| Depth | 254.3 mm |
| Height | 55 mm |
| Weight | 1.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 372 mm |
| Package depth | 117 mm |
| Package height | 308 mm |
| Package weight | 1.9 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
