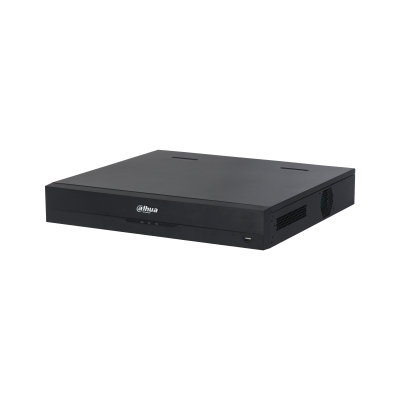

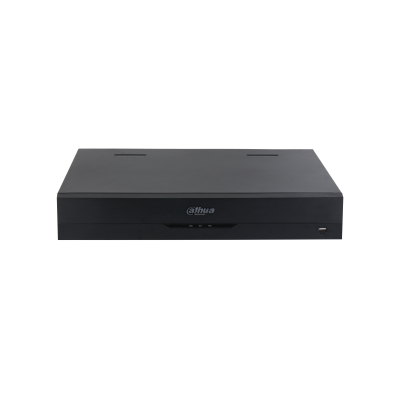

Dahua Technology XVR5432L-4KL-I2 Black

Dahua Technology

XVR5432L-4KL-I2 Black

Model XVR5432L-4KL-I2Part no. DH-XVR5432L-4KL-I2EAN 6939554949500

38 specifications

OSEmbedded LINUX
Weight4.9 kg
ColourBlack
Maximum video resolution3840 x 2160 pixels
Video input channels16 channels
Ethernet LANYes

See all specifications

Overview

OS: Embedded LINUX
Weight: 4.9 kg
Colour: Black
Maximum video resolution: 3840 x 2160 pixels
Video input channels: 16 channels
Ethernet LAN: Yes

Brand: Dahua Technology
Category: Digital Video Recorders (DVR)
Model: XVR5432L-4KL-I2
Part number: DH-XVR5432L-4KL-I2
EAN / UPC: 6939554949500
Also known as: Dahua Technology XVR5432L-4KL-I2 Black

Specifications

38 specifications in 7 groups

Performance

Specification	Value
Maximum video resolution	3840 x 2160 pixels
Audio formats supported	G.711 A-law, G.711 μ-law, PCM
Video compression formats	H.264, H.264+, H.265, H.265+
Video motion detection	Yes
Analog signal format system	NTSC, PAL
Audio system	2-way
Bit rate	6144 Kbit/s
Channels quantity	32 channels
Multi-display modes	4, 8, 25, 36
Multi-display supported	Yes
Operating system installed	Embedded LINUX
Playback resolutions supported	3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720
Product colour	Black
Rack capacity	1U
Certification	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

Ports & interfaces

Specification	Value
Video input channels	16 channels
HDMI ports quantity	2
VGA (D-Sub) output ports	1
Audio input	4
Audio output	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
RS-232 ports	1
RS-485 ports	1
Relay outputs	6

Network

Specification	Value
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

Hard drive

Specification	Value
Number of HDDs supported	4
HDD interface	SATA III

Power

Specification	Value
Power supply type	AC
AC input voltage	100 - 240 V
Power consumption (typical)	30 W

Weight & dimensions

Specification	Value
Width	421 mm
Depth	440 mm
Height	76 mm
Weight	4.9 kg

Packaging data

Specification	Value
Package weight	7.9 kg
