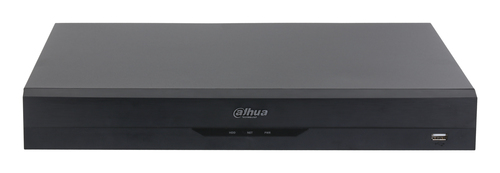

XVR5232AN-4KL-I3/T digital video recorder (DVR) Black
Model XVR5232AN-4KL-I3/TEAN 6937552419872
48 specifications
- OSEmbedded LINUX
- Weight2.38 kg
- ColourBlack
- Maximum video resolution3840 x 2160 pixels
- Video input channels32 channels
- Ethernet LANYes
Overview
- OS
- Embedded LINUX
- Weight
- 2.38 kg
- Colour
- Black
- Maximum video resolution
- 3840 x 2160 pixels
- Video input channels
- 32 channels
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- XVR5232AN-4KL-I3/T
- Part number
- XVR5232AN-4KL-I3/T
- EAN / UPC
- 6937552419872
- Also known as
- Dahua Technology XVR5232AN-4KL-I3/T digital video recorder (DVR) Black
Specifications
48 specifications in 11 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Audio formats supported | G.711 A-law, G.711u, PCM |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Backup function | Yes |
| Video loss detection | Yes |
| Video motion detection | Yes |
| Audio output channels | 1.0 channels |
| Dual stream support | Yes |
| Graphical user interface (GUI) | Yes |
| Multi-display modes | 1, 4, 8, 9, 36, 25, 16 |
| Multi-display supported | Yes |
| Operating system installed | Embedded LINUX |
| Playback modes | General, Instant, Tag, Event, Smart |
| Product colour | Black |
| USB connectivity | Yes |
| Rack capacity | 1U |
Video
| Specification | Value |
|---|---|
| Video resolutions | 3840 x 2160,1920 x 1080,1280 x 720 |

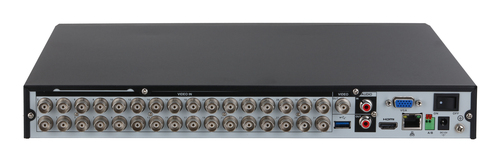

Ports & interfaces
| Specification | Value |
|---|---|
| Video input channels | 32 channels |
| BNC input ports | 32 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Video RCA outputs | 1 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Supported network protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 2 |
| Maximum HDD capacity | 16 TB |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| DC voltage | 12 V |
| Power consumption (typical) | 32 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 375 mm |
| Depth | 333.9 mm |
| Height | 53 mm |
| Weight | 2.38 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 451 mm |
| Package depth | 147 mm |
| Package height | 425 mm |
| Package weight | 3.84 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
