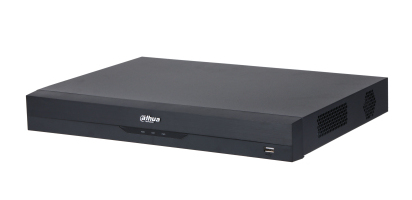

Dahua Technology XVR5216AN-I3/T digital video recorder (DVR) Black
Dahua Technology

XVR5216AN-I3/T digital video recorder (DVR) Black

Model XVR5216AN-I3/T

53 specifications
  • OSEmbedded LINUX
  • Weight1.8 kg
  • ColourBlack
  • Maximum video resolution3840 x 2160 pixels
  • Video input channels24 channels
  • Ethernet LANYes
See all specifications

Overview

OS
Embedded LINUX
Weight
1.8 kg
Colour
Black
Maximum video resolution
3840 x 2160 pixels
Video input channels
24 channels
Ethernet LAN
Yes
Brand
Dahua Technology
Model
XVR5216AN-I3/T
Part number
XVR5216AN-I3/T
Also known as
Dahua Technology XVR5216AN-I3/T digital video recorder (DVR) Black

Specifications

53 specifications in 11 groups

Performance

Maximum video resolution3840 x 2160 pixels
Audio formats supportedPCM, G.711, G.711u
Video compression formatsH.264, H.264+, H.265, H.265+
Backup functionYes
Video loss detectionYes
Video motion detectionYes
Audio bitrate64 Kbit/s
Audio input channels16 channels
Audio output channels1.0 channels
Dual stream supportYes
Graphical user interface (GUI)Yes
Multi-display modes1, 4, 8, 9, 16, 25
Multi-display supportedYes
Number of simultaneously playbacked channels16 channels
Operating system installedEmbedded LINUX
Playback modesInstant, General, Event, Smart, Tag
Product colourBlack
USB connectivityYes
Rack capacity1U
CertificationCE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014

Video

Video resolutions3840 x 2160,1920 x 1080,1280 x 720,1280 x 1024

Ports & interfaces

Video input channels24 channels
BNC input ports16
HDMI ports quantity1
VGA (D-Sub) output ports1
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Video RCA outputs1
RS-485 ports1

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP;

Hard drive

Number of HDDs supported2
HDD interfaceSATA
Maximum HDD capacity16 TB

Power

Power supply typeDC
DC voltage12 V
Power consumption (typical)12 W

Weight & dimensions

Width375 mm
Depth289.6 mm
Height53 mm
Weight1.8 kg

Packaging data

Package width427 mm
Package depth137 mm
Package height356 mm
Package weight2.95 kg

Packaging content

Quick start guideYes

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-10 - 55 °C
Storage temperature (T-T)-20 - 60 °C

Technical details

Compliance certificatesCE
