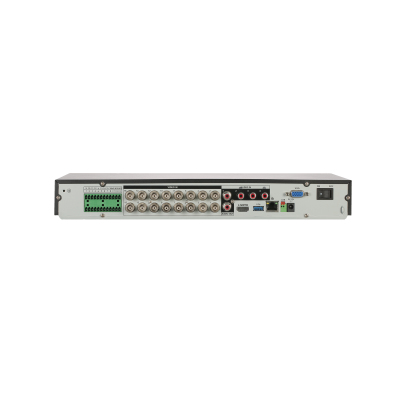

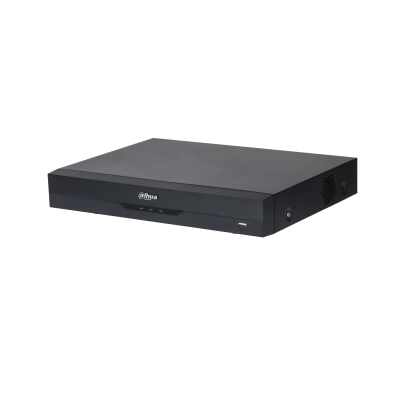

XVR5216A-I2 digital video recorder (DVR) Black
Model XVR5216A-I2
41 specifications
- Resolution3840 x 2160 pixels
- OSEmbedded LINUX
- Weight1.8 kg
- ColourBlack
- Video compression formatsH.265, H.265+
- BNC input ports16
Overview
- Resolution
- 3840 x 2160 pixels
- OS
- Embedded LINUX
- Weight
- 1.8 kg
- Colour
- Black
- Video compression formats
- H.265, H.265+
- BNC input ports
- 16
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- XVR5216A-I2
- Part number
- XVR5216A-I2
- Also known as
- Dahua Technology XVR5216A-I2 digital video recorder (DVR) Black
Specifications
41 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Video compression formats | H.265, H.265+ |
| Analog signal format system | NTSC, PAL |
| Maximum frame rate | 30 fps |
| Operating system installed | Embedded LINUX |
| PTZ control | Yes |
| Pause function | Yes |
| Playback modes | Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Stop, Zoom |
| Plug and Play | Yes |
| Product colour | Black |
| Rack capacity | 1U |
| Compatible operating systems | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1 |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC input ports | 16 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 1 |
| Audio output | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Video RCA outputs | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Number of users | 128 user(s) |
| Supported network protocols | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 2 |
| HDD interface | SATA |
| Maximum HDD capacity | 10 TB |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| AC input voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 375 mm |
| Depth | 288 mm |
| Height | 53 mm |
| Weight | 1.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3.1 kg |
Display
| Specification | Value |
|---|---|
| Display resolution | 3840 x 2160 pixels |
| Display frame rate | 30 fps |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
