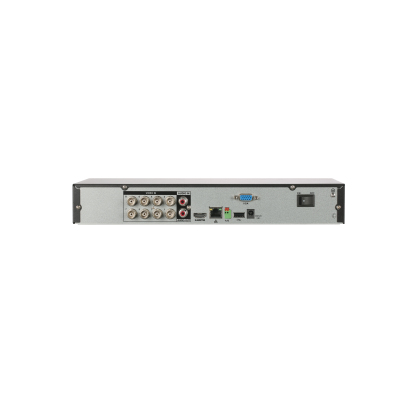

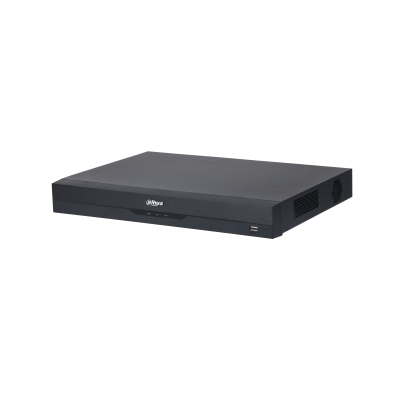

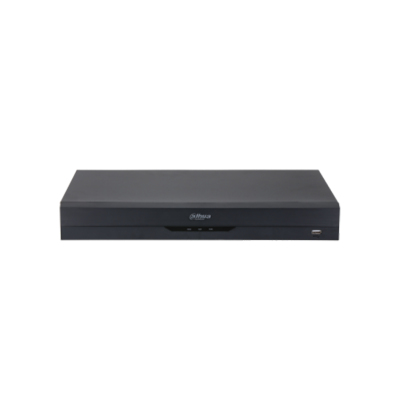

Dahua Technology XVR5208AN-4KL-I2 digital video recorder (DVR) Black

Dahua Technology XVR5208AN-4KL-I2 digital video recorder (DVR) Black

Model XVR5208AN-4KL-I2

38 specifications
  • Weight1.6 kg
  • ColourBlack
  • Maximum video resolution3840 x 2160 pixels
  • Video input channels8 channels
  • Ethernet LANYes
  • Number of HDDs supported2
See all specifications

Overview

Weight
1.6 kg
Colour
Black
Maximum video resolution
3840 x 2160 pixels
Video input channels
8 channels
Ethernet LAN
Yes
Number of HDDs supported
2
Brand
Dahua Technology
Model
XVR5208AN-4KL-I2
Part number
XVR5208AN-4KL-I2
Also known as
Dahua Technology XVR5208AN-4KL-I2 digital video recorder (DVR) Black

Specifications

38 specifications in 8 groups

Performance

Maximum video resolution3840 x 2160 pixels
Video compression formatsH.264, H.264+, H.265, H.265+
Video motion detectionYes
Bit rate6144 Kbit/s
Channels quantity8 channels
PTZ controlYes
Playback resolutions supported3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720
Product colourBlack
Rack capacity1U
CertificationCE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

Ports & interfaces

Video input channels8 channels
HDMI ports quantity1
VGA (D-Sub) output ports1
Audio inputRCA
Audio outputRCA
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
RS-485 ports1

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet interface typeGigabit Ethernet
Number of users128 user(s)
Supported network protocolsHTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

Hard drive

Number of HDDs supported2
HDD interfaceSATA, SATA II, SATA III
Maximum HDD capacity10 TB

Power

Power supply typeDC
DC voltage12 V
Power consumption (typical)10 W

Weight & dimensions

Width375 mm
Depth288 mm
Height53 mm
Weight1.6 kg

Packaging data

Package weight3 kg

Operational conditions

Operating relative humidity (H-H)0 - 90%
Operating temperature (T-T)-10 - 55 °C
Storage relative humidity (H-H)0 - 90%
Storage temperature (T-T)-20 - 70 °C
