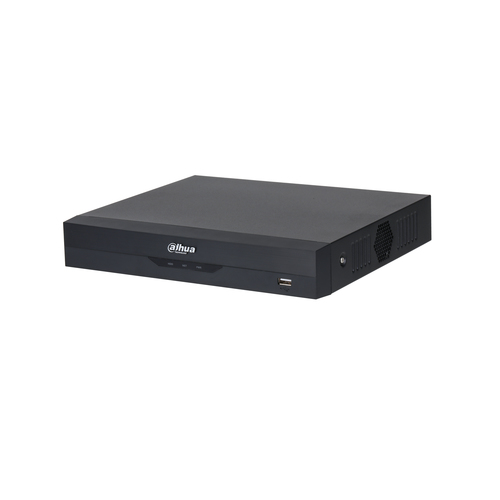

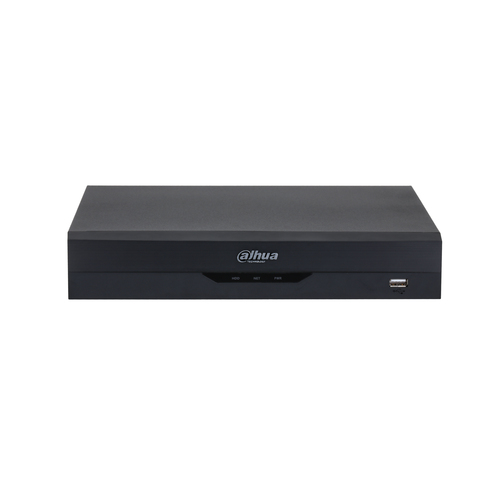

XVR5116HS-I2 digital video recorder (DVR) Black
Model XVR5116HS-I2
40 specifications
- OSEmbedded LINUX
- Weight1 kg
- ColourBlack
- Maximum video resolution3840 x 2160 pixels
- Video input channels16 channels
- Ethernet LANYes
Overview
- OS
- Embedded LINUX
- Weight
- 1 kg
- Colour
- Black
- Maximum video resolution
- 3840 x 2160 pixels
- Video input channels
- 16 channels
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- XVR5116HS-I2
- Part number
- XVR5116HS-I2
- Also known as
- Dahua Technology XVR5116HS-I2 digital video recorder (DVR) Black
Specifications
40 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Audio formats supported | G.711 A-law, G.711 μ-law, PCM |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Video capturing speed | 60 fps |
| Analog signal format system | NTSC, PAL |
| Bit rate | 64 Kbit/s |
| Channels quantity | 16 channels |
| Operating system installed | Embedded LINUX |
| Pause function | Yes |
| Playback modes | Next, Pause, Play, Previous, Slow, Stop, Zoom |
| Playback resolutions supported | 1920 x 1080, 1280 x 1024, 1280 x 720, 3840 x 2160 |
| Product colour | Black |
| Certification | FCC: Part 15 Subpart B, CE: CE-LVD: EN 60950-1/I, EC 60950-1, CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 |

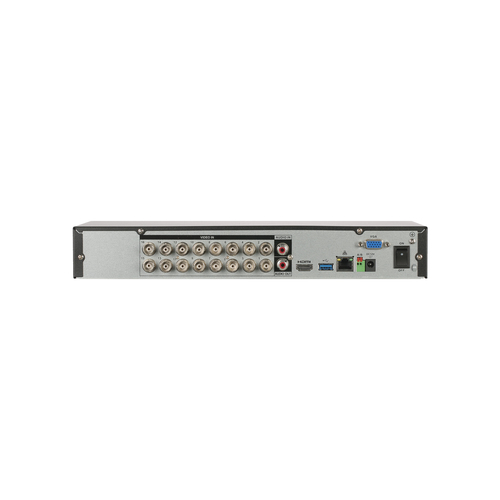

Ports & interfaces
| Specification | Value |
|---|---|
| Video input channels | 16 channels |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| Video RCA outputs | 1 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Number of users | 128 user(s) |
| Supported network protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
| HDD interface | SATA |
| Maximum HDD capacity | 10 TB |
| Media type | Digital |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| DC voltage | 12 V |
| Power consumption (typical) | 12 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 260 mm |
| Depth | 226.6 mm |
| Height | 47.6 mm |
| Weight | 1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.4 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
