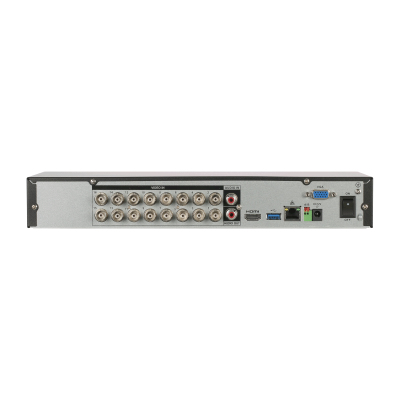

XVR5116H-I3 Black
Model XVR5116H-I3Part no. DH-XVR5116H-I3EAN 6923172534118
45 specifications
- OSEmbedded LINUX
- Weight1.15 kg
- ColourBlack
- Maximum video resolution3840 x 2160 pixels
- BNC input ports16
- Ethernet LANYes
Overview
- OS
- Embedded LINUX
- Weight
- 1.15 kg
- Colour
- Black
- Maximum video resolution
- 3840 x 2160 pixels
- BNC input ports
- 16
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- XVR5116H-I3
- Part number
- DH-XVR5116H-I3
- EAN / UPC
- 6923172534118
- Also known as
- Dahua Technology XVR5116H-I3 Black
Specifications
45 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Audio formats supported | G.711 A-law, G.711 μ-law, PCM |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Backup function | Yes |
| Video capturing speed (NTSC) | 30 fps |
| Video capturing speed (PAL) | 25 fps |
| Video loss detection | Yes |
| Video motion detection | Yes |
| Analog signal format system | NTSC, PAL |
| Bit rate | 32 Kbit/s |
| Channels quantity | 16 channels |
| Dual stream support | Yes |
| Operating system installed | Embedded LINUX |
| PTZ control | Yes |
| Product colour | Black |
| Video streaming | Yes |
| Rack capacity | 1U |
| Certification | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC input ports | 16 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 1 RCA |
| Audio output | 1 RCA |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Video in | HDCVI/AHD/TVI/CVBS/IP |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
Hard drive
| Specification | Value |
|---|---|
| HDD interface | SATA III |
| Maximum HDD capacity | 1 TB |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| DC voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 325 mm |
| Depth | 256.6 mm |
| Height | 55 mm |
| Weight | 1.15 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 117 mm |
| Package depth | 372 mm |
| Package height | 308 mm |
| Package weight | 1.95 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
