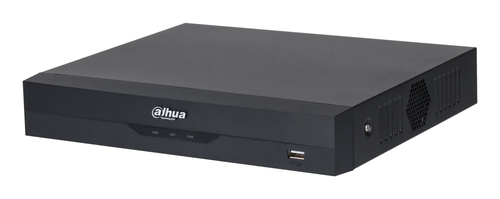

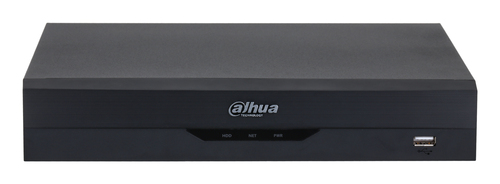

XVR5108HS-I3 digital video recorder (DVR) Black
Model XVR5108HS-I3EAN 6939554930386
32 specifications
- OSLinux
- Weight1.1 kg
- ColourBlack
- Video compression formatsH.264, H.264+, H.265, H.265+
- HDMI ports quantity1
- Ethernet LANYes
Overview
- OS
- Linux
- Weight
- 1.1 kg
- Colour
- Black
- Video compression formats
- H.264, H.264+, H.265, H.265+
- HDMI ports quantity
- 1
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- XVR5108HS-I3
- Part numbers
- XVR5108HS-I3, DH-XVR5108HS-I3
- EAN / UPC
- 6939554930386, 6923172504418, 8050617261402
- Also known as
- Dahua Technology XVR5108HS-I3 digital video recorder (DVR) Black
Specifications
32 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Video motion detection | Yes |
| Channels quantity | 8 channels |
| Dual stream support | Yes |
| Multi-display supported | Yes |
| Operating system installed | Linux |
| Product colour | Black |
| Certification | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024 |

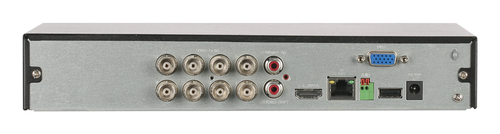

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
| HDD interface | SATA |
| Maximum HDD capacity | 16 TB |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| DC voltage | 12 V |
| Power consumption (typical) | 7 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 260 mm |
| Depth | 237.9 mm |
| Height | 47.6 mm |
| Weight | 1.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 333 mm |
| Package depth | 315 mm |
| Package height | 89 mm |
| Package weight | 1.5 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
