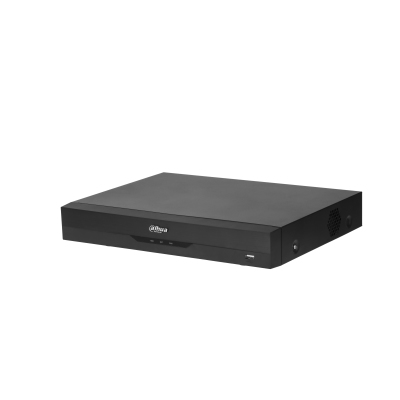

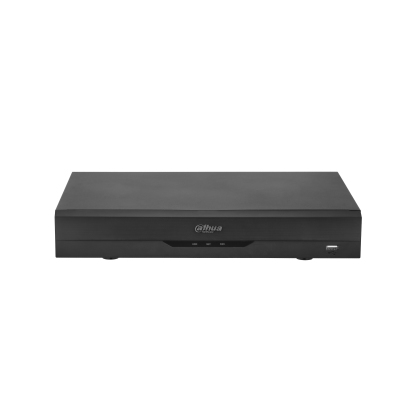

Dahua Technology XVR5108H-I3 Black

Dahua Technology

XVR5108H-I3 Black

Model XVR5108H-I3Part no. XVR5108H-I3-V3EAN 6923172504425

39 specifications

OSEmbedded LINUX
Weight1.2 kg
ColourBlack
Audio formats supportedG.711 A-law, G.711 μ-law, PCM
Video input channels8 channels
Ethernet LANYes

See all specifications

Overview

OS: Embedded LINUX
Weight: 1.2 kg
Colour: Black
Audio formats supported: G.711 A-law, G.711 μ-law, PCM
Video input channels: 8 channels
Ethernet LAN: Yes

Brand: Dahua Technology
Category: Digital Video Recorders (DVR)
Model: XVR5108H-I3
Part numbers: XVR5108H-I3-V3, DH-XVR5108H-I3
EAN / UPC: 6923172504425
Also known as: Dahua Technology XVR5108H-I3 Black

Specifications

39 specifications in 8 groups

Performance

Specification	Value
Audio formats supported	G.711 A-law, G.711 μ-law, PCM
Video compression formats	H.264, H.264+, H.265, H.265+
Backup function	Yes
Video motion detection	Yes
Analog signal format system	NTSC, PAL
Bit rate	6144 Kbit/s
Channels quantity	8 channels
Operating system installed	Embedded LINUX
Product colour	Black
USB connectivity	Yes
Rack capacity	1U
Certification	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024

Ports & interfaces

Specification	Value
Video input channels	8 channels
BNC input ports	8
HDMI ports quantity	1
VGA (D-Sub) output ports	1
Audio input	RCA
Audio output	RCA
USB 2.0 ports quantity	2
RS-485 ports	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P

Hard drive

Specification	Value
Number of HDDs supported	1
HDD interface	SATA III
Maximum HDD capacity	1 TB

Power

Specification	Value
Power supply type	DC
DC voltage	12 V

Weight & dimensions

Specification	Value
Width	325 mm
Depth	257.1 mm
Height	55 mm
Weight	1.2 kg

Packaging data

Specification	Value
Package width	372 mm
Package depth	308 mm
Package height	117 mm
Package weight	1.9 kg

Operational conditions

Specification	Value
Operating relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	-10 - 55 °C
