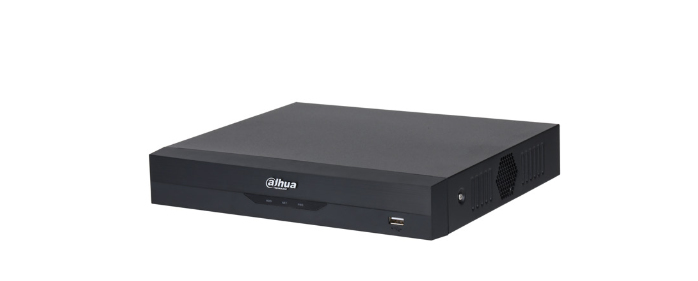

XVR5104HS-I3 digital video recorder (DVR) Black
Model XVR5104HS-I3EAN 6923172504371
37 specifications
- Weight1 kg
- ColourBlack
- Maximum video resolution1920 x 1080 pixels
- Video input channels4 channels
- Ethernet LANYes
- Number of HDDs supported1
Overview
- Weight
- 1 kg
- Colour
- Black
- Maximum video resolution
- 1920 x 1080 pixels
- Video input channels
- 4 channels
- Ethernet LAN
- Yes
- Number of HDDs supported
- 1
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- XVR5104HS-I3
- Part numbers
- XVR5104HS-I3, DH-XVR5104HS-I3
- EAN / UPC
- 6923172504371, 6939554930348
- Also known as
- Dahua Technology XVR5104HS-I3 digital video recorder (DVR) Black
Specifications
37 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Audio formats supported | G.711 A-law, G.711 μ-law, PCM |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Backup function | Yes |
| Video loss detection | Yes |
| Video motion detection | Yes |
| Playback modes | Event, General, Instant, Smart, Tag |
| Product colour | Black |
| Certification | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024 |
Ports & interfaces
| Specification | Value |
|---|---|
| Video input channels | 4 channels |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 1 |
| Audio output | 1 |
| USB 2.0 ports quantity | 2 |
| Video in | 4 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
| HDD interface | SATA |
| Maximum HDD capacity | 16 TB |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| DC voltage | 12 V |
| Power consumption (typical) | 4 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 260 mm |
| Depth | 237.9 mm |
| Height | 47.6 mm |
| Weight | 1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 330 mm |
| Package depth | 315 mm |
| Package height | 89 mm |
| Package weight | 1.4 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
