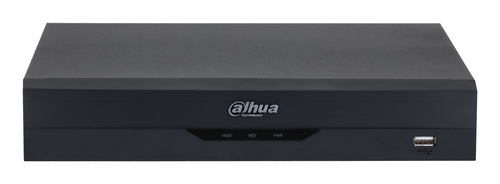

XVR5104HS-4KL-I3/T digital video recorder (DVR) Internal Black
Model XVR5104HS-4KL-I3/TEAN 6937552419414
53 specifications
- OSEmbedded LINUX
- Weight880 g
- ColourBlack
- Maximum video resolution3840 x 2160 pixels
- Video input channels4 channels
- Ethernet LANYes
Overview
- OS
- Embedded LINUX
- Weight
- 880 g
- Colour
- Black
- Maximum video resolution
- 3840 x 2160 pixels
- Video input channels
- 4 channels
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- XVR5104HS-4KL-I3/T
- Part number
- XVR5104HS-4KL-I3/T
- EAN / UPC
- 6937552419414
- Also known as
- Dahua Technology XVR5104HS-4KL-I3/T digital video recorder (DVR) Internal Black
Specifications
53 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Internal | Yes |
| Backup function | Yes |
| Video capturing speed | 30 fps |
| Video loss detection | Yes |
| Video motion detection | Yes |
| Analog signal format system | NTSC, PAL |
| Audio system | 2-way |
| Bit rate | 32 Kbit/s |
| Channels quantity | 8 channels |
| Dual stream support | Yes |
| LED indicators | HDD, Network, Power |
| Maximum frame rate | 60 fps |
| Multi-display modes | 4, 8, 9 |
| Multi-display supported | Yes |
| Operating system installed | Embedded LINUX |
| PTZ control | Yes |
| Playback modes | Backup selection, Fast, Full screen, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom |
| Product colour | Black |
| USB connectivity | Yes |
| Video streaming | Yes |
| Rack capacity | 1U |
| Certification | CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 |

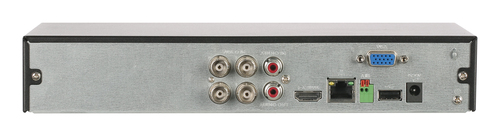

Ports & interfaces
| Specification | Value |
|---|---|
| Video input channels | 4 channels |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 1 |
| Audio output | 1 |
| USB 2.0 ports quantity | 1 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Fast Ethernet |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
| HDD interface | SATA |
| Maximum HDD capacity | 10 TB |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| DC voltage | 12 V |
| DC current (max) | 2 A |
| Power consumption (typical) | 7 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 260 mm |
| Depth | 237.8 mm |
| Height | 47.6 mm |
| Weight | 880 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 344 mm |
| Package depth | 89 mm |
| Package height | 287 mm |
| Package weight | 1.45 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
