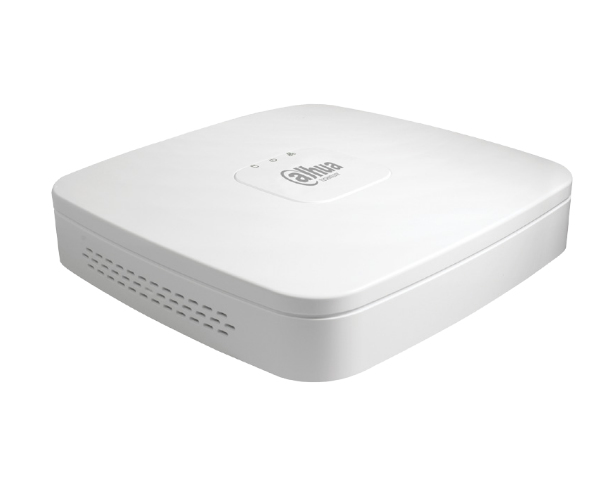

XVR5104C-X digital video recorder (DVR) White
Model XVR5104C-X
51 specifications
- OSLinux
- Weight1.1 kg
- ColourWhite
- Maximum video resolution1920 x 1080 pixels
- Video input channels4 channels
- Ethernet LANYes
Overview
- OS
- Linux
- Weight
- 1.1 kg
- Colour
- White
- Maximum video resolution
- 1920 x 1080 pixels
- Video input channels
- 4 channels
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- XVR5104C-X
- Part number
- XVR5104C-X
- Also known as
- Dahua Technology XVR5104C-X digital video recorder (DVR) White
Specifications
51 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Audio formats supported | AAC, PCM |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Internal | No |
| Backup function | Yes |
| Video capturing speed | 30 fps |
| Video loss detection | Yes |
| Video motion detection | Yes |
| Analog signal format system | NTSC, PAL |
| Bit rate | 6144 Kbit/s |
| Channels quantity | 4 channels |
| LED indicators | Yes |
| Maximum frame rate | 30 fps |
| Maximum recording time | 1 h |
| Multi-display supported | Yes |
| Operating system installed | Linux |
| PTZ control | Yes |
| Playback resolutions supported | 1920×1080, 1280×1024, 1280×720 |
| Product colour | White |
| Video streaming | Yes |
| Rack capacity | 1U |
| Certification | FCC Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL 60950-1 |
Ports & interfaces
| Specification | Value |
|---|---|
| Video input channels | 4 channels |
| BNC input ports | 4 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 1 |
| Audio output | 1 |
| USB 2.0 ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Fast Ethernet |
| Number of users | 128 user(s) |
| Supported network protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPoE,DDNS, FTP, P2P |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
| HDD interface | Serial ATA |
| Maximum HDD capacity | 10 TB |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Optical drive
| Specification | Value |
|---|---|
| Optical drive included | No |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| DC voltage | 12 V |
| Power consumption (max) | 10 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 205 mm |
| Depth | 211 mm |
| Height | 45 mm |
| Weight | 1.1 kg |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
