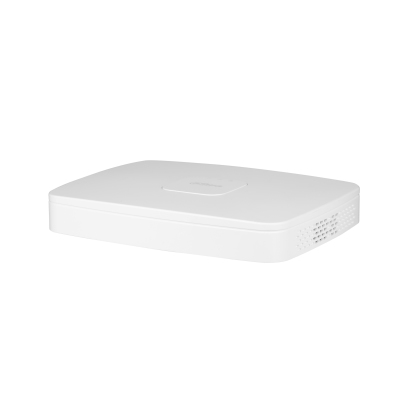

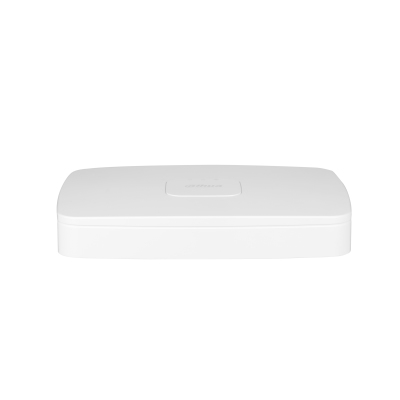

Dahua Technology XVR5104C-4KL-I3 White

Dahua Technology

XVR5104C-4KL-I3 White

Model XVR5104C-4KL-I3Part no. DH-XVR5104C-4KL-I3EAN 6923172500328

38 specifications

OSEmbedded LINUX
Weight530 g
ColourWhite
Video compression formatsH.264, H.264+, H.265, H.265+
Video input channels4 channels
Ethernet LANYes

See all specifications

Overview

OS: Embedded LINUX
Weight: 530 g
Colour: White
Video compression formats: H.264, H.264+, H.265, H.265+
Video input channels: 4 channels
Ethernet LAN: Yes

Brand: Dahua Technology
Category: Digital Video Recorders (DVR)
Model: XVR5104C-4KL-I3
Part number: DH-XVR5104C-4KL-I3
EAN / UPC: 6923172500328
Also known as: Dahua Technology XVR5104C-4KL-I3 White

Specifications

38 specifications in 9 groups

Performance

Specification	Value
Video compression formats	H.264, H.264+, H.265, H.265+
Backup function	Yes
Video motion detection	Yes
Analog signal format system	NTSC, PAL
Audio input channels	1 channels
Audio output channels	1.0 channels
Audio system	2-way
Bit rate	6144 Kbit/s
Channels quantity	4 channels
Operating system installed	Embedded LINUX
Product colour	White
Rack capacity	1U
Certification	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024

Ports & interfaces

Specification	Value
Video input channels	4 channels
HDMI ports quantity	1
VGA (D-Sub) output ports	1
Audio input	RCA
Audio output	RCA
USB 2.0 ports quantity	2

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P

Hard drive

Specification	Value
HDD interface	SATA III
Maximum HDD capacity	1 TB

Processor

Specification	Value
Built-in processor	Yes

Power

Specification	Value
DC voltage	12 V
Power consumption (typical)	10 W

Weight & dimensions

Specification	Value
Width	204.6 mm
Depth	210.9 mm
Height	45.6 mm
Weight	530 g

Packaging data

Specification	Value
Package width	364 mm
Package depth	261 mm
Package height	96 mm
Package weight	1.07 kg

Operational conditions

Specification	Value
Operating relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	-10 - 55 °C
