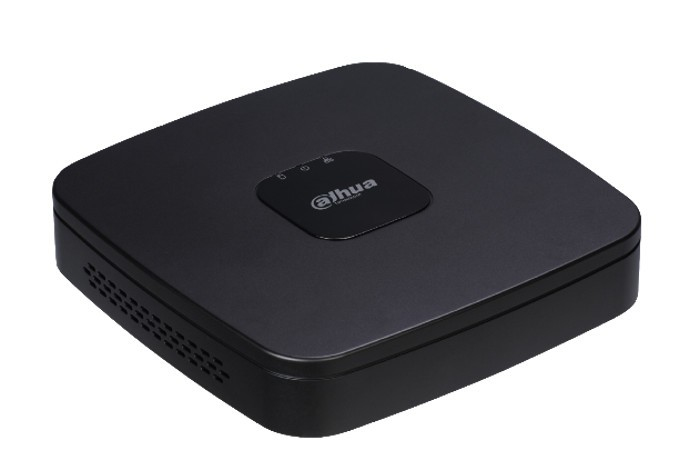

XVR4108CNX1 digital video recorder (DVR) Internal Black
Model XVR4108CNX1
36 specifications
- Resolution1920 x 1080 pixels
- OSEmbedded LINUX
- Weight500 g
- ColourBlack
- Video compression formatsH.264
- BNC input ports8
Overview
- Resolution
- 1920 x 1080 pixels
- OS
- Embedded LINUX
- Weight
- 500 g
- Colour
- Black
- Video compression formats
- H.264
- BNC input ports
- 8
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- XVR4108CNX1
- Part number
- XVR4108CNX1
- Also known as
- Dahua Technology XVR4108CNX1 digital video recorder (DVR) Internal Black
Specifications
36 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Video compression formats | H.264 |
| Internal | Yes |
| Analog signal format system | NTSC, PAL |
| Channels quantity | 8 channels |
| Maximum frame rate | 30 fps |
| Operating system installed | Embedded LINUX |
| Pause function | Yes |
| Playback resolutions supported | 1920×1080 1280×1024 1280×720 1024×768 |
| Plug and Play | Yes |
| Product colour | Black |
| Certification | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1 |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC input ports | 8 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 1 |
| Audio output | 1 |
| USB 2.0 ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Fast Ethernet |
| Number of users | 128 user(s) |
| Supported network protocols | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
| HDD interface | NL-SATA |
| Maximum HDD capacity | 6 TB |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 10 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 205 mm |
| Depth | 211 mm |
| Height | 45 mm |
| Weight | 500 g |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| Display resolution | 1920 x 1080 pixels |
| Display frame rate | 30 fps |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
