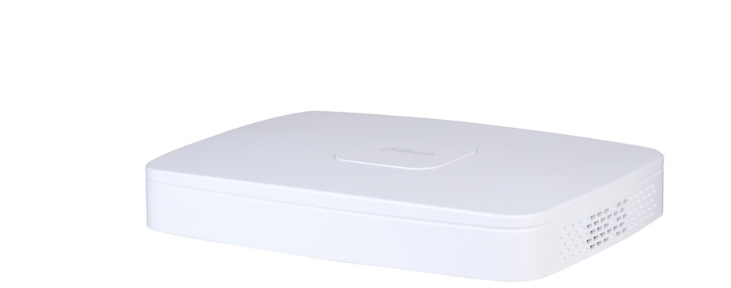

XVR4104C-I digital video recorder (DVR) White
Model XVR4104C-IEAN 6923172507525
31 specifications
- OSEmbedded LINUX
- Weight470 g
- ColourWhite
- Maximum video resolution1920 x 1080 pixels
- Video input channels4 channels
- Ethernet LANYes
Overview
- OS
- Embedded LINUX
- Weight
- 470 g
- Colour
- White
- Maximum video resolution
- 1920 x 1080 pixels
- Video input channels
- 4 channels
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- XVR4104C-I
- Part number
- XVR4104C-I
- EAN / UPC
- 6923172507525
- Also known as
- Dahua Technology XVR4104C-I digital video recorder (DVR) White
Specifications
31 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Audio formats supported | G.711 A-law, G.711 μ-law, PCM |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Audio input channels | 1 channels |
| Dual stream support | Yes |
| Maximum frame rate | 30 fps |
| Operating system installed | Embedded LINUX |
| Playback modes | General |
| Product colour | White |
Ports & interfaces
| Specification | Value |
|---|---|
| Video input channels | 4 channels |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
Hard drive
| Specification | Value |
|---|---|
| HDD interface | SATA |
| Maximum HDD capacity | 16 TB |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| DC voltage | 12 V |
| Power consumption (typical) | 4 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 204.6 mm |
| Depth | 210.9 mm |
| Height | 45.6 mm |
| Weight | 470 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 256 mm |
| Package depth | 330 mm |
| Package height | 101 mm |
| Package weight | 1.04 kg |
