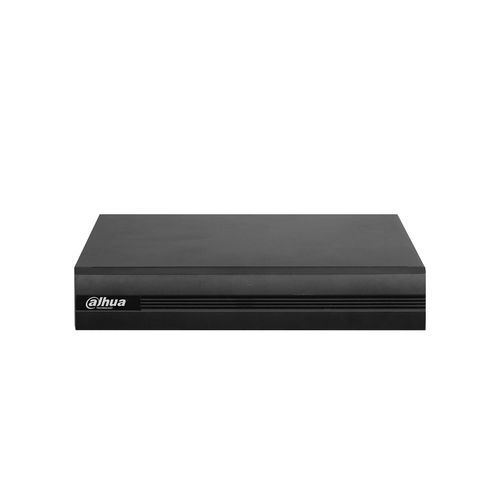

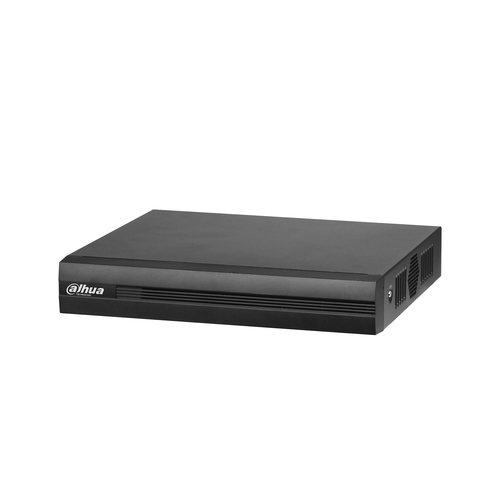

XVR1B16-I Black
Model XVR1B16-IPart no. DH-XVR1B16-IEAN 6939554919299
41 specifications
- OSEmbedded LINUX
- Weight890 g
- ColourBlack
- Maximum video resolution1920 x 1080 pixels
- Video input channels16 channels
- Ethernet LANYes
Overview
- OS
- Embedded LINUX
- Weight
- 890 g
- Colour
- Black
- Maximum video resolution
- 1920 x 1080 pixels
- Video input channels
- 16 channels
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- XVR1B16-I
- Part number
- DH-XVR1B16-I
- EAN / UPC
- 6939554919299
- Also known as
- Dahua Technology XVR1B16-I Black
Specifications
41 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Audio formats supported | G.711, PCM |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Video capturing speed | 30 fps |
| Video motion detection | Yes |
| Analog signal format system | NTSC, PAL |
| Audio system | 2-way |
| Bit rate | 4096 Kbit/s |
| Operating system installed | Embedded LINUX |
| PTZ control | Yes |
| Playback resolutions supported | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Product colour | Black |
| Video streaming | Yes |
| Rack capacity | 1U |
| Certification | FCC: 15 B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130; EN 55024 UL: UL 60950-1 |
Ports & interfaces
| Specification | Value |
|---|---|
| Video input channels | 16 channels |
| BNC input ports | 16 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 1 |
| Audio output | 1 |
| USB 2.0 ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Fast Ethernet |
| Number of users | 128 user(s) |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; P2P; IP Search |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
| HDD interface | SATA, SATA II, SATA III |
| Maximum HDD capacity | 6 TB |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Power
| Specification | Value |
|---|---|
| DC voltage | 12 V |
| Power consumption (typical) | 10 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 260 mm |
| Depth | 231.4 mm |
| Height | 47.6 mm |
| Weight | 890 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 45 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
