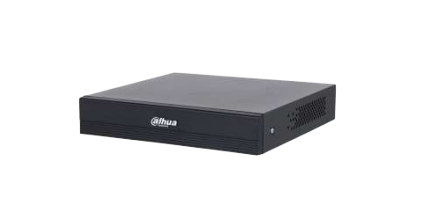

XVR1B04-I/T digital video recorder (DVR) Black
Model XVR1B04-I/T
36 specifications
- OSLinux
- Weight540 g
- ColourBlack
- Maximum video resolution1920 x 1080 pixels
- Video input channels4 channels
- Ethernet LANYes
Overview
- OS
- Linux
- Weight
- 540 g
- Colour
- Black
- Maximum video resolution
- 1920 x 1080 pixels
- Video input channels
- 4 channels
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- XVR1B04-I/T
- Part number
- XVR1B04-I/T
- Also known as
- Dahua Technology XVR1B04-I/T digital video recorder (DVR) Black
Specifications
36 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Audio formats supported | G.711 A-law, G.711u, PCM |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Internal | No |
| Video motion detection | Yes |
| Channels quantity | 4 channels |
| Operating system installed | Linux |
| Product colour | Black |
| Rack capacity | 1U |
| Certification | CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 |
Ports & interfaces
| Specification | Value |
|---|---|
| Video input channels | 4 channels |
| BNC input ports | 4 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; Filtro IP; FTP; DDNS |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
| HDD interface | SATA |
| Maximum HDD capacity | 6 TB |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| DC voltage | 12 V |
| DC current (max) | 1.5 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 197 mm |
| Depth | 204.3 mm |
| Height | 41.5 mm |
| Weight | 540 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 332 mm |
| Package depth | 64 mm |
| Package height | 240 mm |
| Package weight | 940 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 45 °C |
| Storage temperature (T-T) | -20 - 60 °C |
