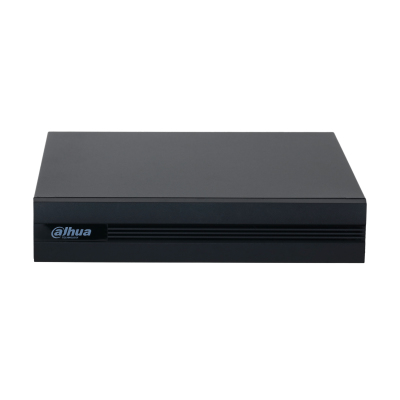

XVR1B04-I digital video recorder (DVR) Black
Model XVR1B04-I
51 specifications
- OSEmbedded LINUX
- Weight570 g
- ColourBlack
- Maximum video resolution1920 x 1080 pixels
- Video input channels5 channels
- Ethernet LANYes
Overview
- OS
- Embedded LINUX
- Weight
- 570 g
- Colour
- Black
- Maximum video resolution
- 1920 x 1080 pixels
- Video input channels
- 5 channels
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- XVR1B04-I
- Part number
- XVR1B04-I
- Also known as
- Dahua Technology XVR1B04-I digital video recorder (DVR) Black
Specifications
51 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Audio formats supported | G.711 A-law, G.711 μ-law, PCM |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Internal | No |
| Backup function | Yes |
| Video capturing speed | 30 fps |
| Video loss detection | Yes |
| Video motion detection | Yes |
| Analog signal format system | NTSC, PAL |
| Audio input channels | 1 channels |
| Audio output channels | 1.0 channels |
| Audio system | 2-way |
| Bit rate | 32 Kbit/s |
| Channels quantity | 4 channels |
| Dual stream support | Yes |
| Maximum frame rate | 60 fps |
| Motion sensor | Yes |
| Multi-display modes | 1, 4, 6 |
| Multi-display supported | Yes |
| Operating system installed | Embedded LINUX |
| PTZ control | Yes |
| Playback modes | Backup selection, Full screen, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom |
| Product colour | Black |
| USB connectivity | Yes |
| Video streaming | Yes |
| Rack capacity | 1U |
Ports & interfaces
| Specification | Value |
|---|---|
| Video input channels | 5 channels |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Fast Ethernet |
| Number of users | 128 user(s) |
| Supported network protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
| HDD interface | SATA |
| Maximum HDD capacity | 6 TB |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| DC voltage | 12 V |
| Power consumption (typical) | 7 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 198 mm |
| Depth | 202.9 mm |
| Height | 41.5 mm |
| Weight | 570 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.08 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -10 - 45 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
