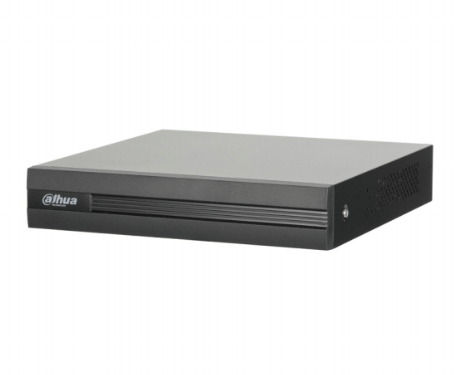

XVR1A044B2A11 digital video recorder (DVR) Black
Model XVR1A044B2A11
42 specifications
- OSEmbedded LINUX
- Weight550 g
- ColourBlack
- Maximum video resolution1920 x 1080 pixels
- HDMI ports quantity1
- Ethernet LANYes
Overview
- OS
- Embedded LINUX
- Weight
- 550 g
- Colour
- Black
- Maximum video resolution
- 1920 x 1080 pixels
- HDMI ports quantity
- 1
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- XVR1A044B2A11
- Part number
- XVR1A044B2A11
- Also known as
- Dahua Technology XVR1A044B2A11 digital video recorder (DVR) Black
Specifications
42 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Audio formats supported | AAC, G.711, PCM |
| Video compression formats | H.264 |
| Video loss detection | Yes |
| Video motion detection | Yes |
| Analog signal format system | NTSC, PAL |
| Aspect ratio | 16:9 |
| Bit rate | 4096 Kbit/s |
| Channels quantity | 8 channels |
| Maximum frame rate | 30 fps |
| Operating system installed | Embedded LINUX |
| PTZ control | Yes |
| Playback modes | Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom |
| Playback resolutions supported | 1920×1080, 1280×1024, 1280×720, 1024x768 |
| Product colour | Black |
| Rack capacity | 1U |
| Certification | CE: CE-LVD: EN 60950-1/IEC 60950-1CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B UL: UL 60950-1 |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| Video RCA outputs | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Fast Ethernet |
| Number of users | 128 user(s) |
| Supported network protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
| HDD interface | Serial ATA |
| Maximum HDD capacity | 6 TB |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| DC voltage | 12 V |
| Power consumption (typical) | 10 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 197 mm |
| Depth | 192 mm |
| Height | 41 mm |
| Weight | 550 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 45 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
