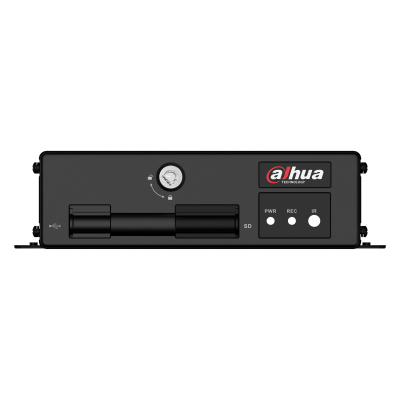

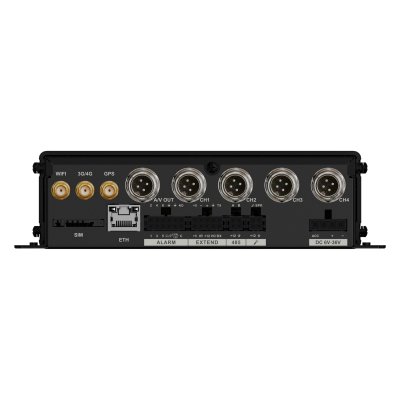

MXVR1004-GFWI digital video recorder (DVR) Black
Model MXVR1004-GFWI
33 specifications
- OSEmbedded LINUX
- ColourBlack
- Maximum video resolution1920 x 1080 pixels
- Video input channels4 channels
- Ethernet LANYes
- Power supply typeDC
Overview
- OS
- Embedded LINUX
- Colour
- Black
- Maximum video resolution
- 1920 x 1080 pixels
- Video input channels
- 4 channels
- Ethernet LAN
- Yes
- Power supply type
- DC
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- MXVR1004-GFWI
- Part number
- MXVR1004-GFWI
- Also known as
- Dahua Technology MXVR1004-GFWI digital video recorder (DVR) Black
Specifications
33 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Audio formats supported | G.711 A-law, G.711 μ-law, PCM |
| Video compression formats | H.264, H.265 |
| Video motion detection | Yes |
| Channels quantity | 4 channels |
| Compatible memory cards | SD |
| Multi-display modes | 1, 4, 6 |
| Multi-display supported | Yes |
| Operating system installed | Embedded LINUX |
| Product colour | Black |
| Remote viewing | Yes |
| USB connectivity | Yes |
| Certification | CE\FCC\EN50155\ISO7637-2\ISO16750\BIS |
Ports & interfaces
| Specification | Value |
|---|---|
| Video input channels | 4 channels |
| USB 2.0 ports quantity | 2 |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Fast Ethernet |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| DC voltage | 6 - 36 V |
| Power consumption (typical) | 6.7 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 138 mm |
| Depth | 160 mm |
| Height | 49 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 308 mm |
| Package depth | 293 mm |
| Package height | 123 mm |
| Package weight | 2.83 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 70 °C |
