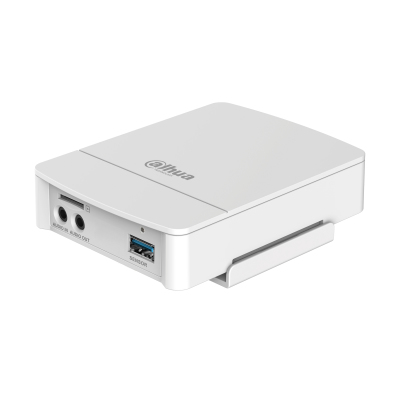

IPC-HUM8231-E1 digital video recorder (DVR) White
Model IPC-HUM8231-E1
38 specifications
- Memory32 MB
- Weight210 g
- ColourWhite
- Maximum video resolution1920 x 1080 pixels
- Alarm input channels2
- Ethernet LANYes
Overview
- Memory
- 32 MB
- Weight
- 210 g
- Colour
- White
- Maximum video resolution
- 1920 x 1080 pixels
- Alarm input channels
- 2
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- IPC-HUM8231-E1
- Part number
- IPC-HUM8231-E1
- Also known as
- Dahua Technology IPC-HUM8231-E1 digital video recorder (DVR) White
Specifications
38 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Audio formats supported | AAC, G.711 A-law, G.726 |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Video capturing speed | 60 fps |
| Video motion detection | Yes |
| Audio input channels | 1 channels |
| Audio output channels | 1.0 channels |
| Channels quantity | 1 channels |
| Compatible memory cards | MicroSD (TransFlash) |
| Digital zoom | 16x |
| Maximum frame rate | 60 fps |
| Product colour | White |
| USB connectivity | Yes |
| Video streaming | Yes |
| Certification | CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B |
Ports & interfaces
| Specification | Value |
|---|---|
| Alarm input channels | 2 |
| Alarm output channels | 2 |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of users | 20 user(s) |
| Supported network protocols | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP |
Memory
| Specification | Value |
|---|---|
| Flash memory | 512 MB |
| Internal memory | 32 MB |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| DC voltage | 12 V |
| Power consumption (typical) | 6 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110 mm |
| Depth | 82.7 mm |
| Height | 24 mm |
| Weight | 210 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 300 g |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -30 - 60 °C |
