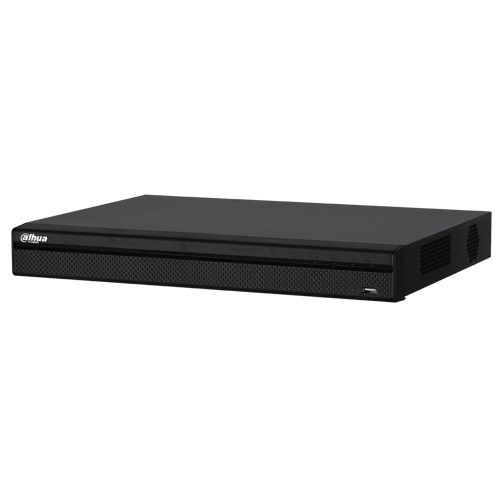

HCVR7208AN4K digital video recorder (DVR) Black
Model HCVR7208AN4K
44 specifications
- OSEmbedded LINUX
- ColourBlack
- Maximum video resolution3840 x 2160 pixels
- BNC input ports8
- Ethernet LANYes
- Number of HDDs supported2
Overview
- OS
- Embedded LINUX
- Colour
- Black
- Maximum video resolution
- 3840 x 2160 pixels
- BNC input ports
- 8
- Ethernet LAN
- Yes
- Number of HDDs supported
- 2
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- HCVR7208AN4K
- Part number
- HCVR7208AN4K
- Also known as
- Dahua Technology HCVR7208AN4K digital video recorder (DVR) Black
Specifications
44 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Video compression formats | H.264, H.264+ |
| Bit rate | 12288 Kbit/s |
| Event logging | Yes |
| Maximum frame rate | 30 fps |
| Operating system installed | Embedded LINUX |
| PTZ control | Yes |
| Pause function | Yes |
| Playback modes | Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom |
| Playback resolutions supported | 3840x2160 1920×1080 1280×1024 1280×720 1024×768 |
| Plug and Play | Yes |
| Product colour | Black |
| Rack capacity | 1U |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC input ports | 8 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 1 |
| Audio output | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Video RCA outputs | 1 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Number of users | 128 user(s) |
| Supported network protocols | HTTP, TCP / IP, IPv4 / IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, Filtro IP, PPPoE, DDNS, FTP, Alarma Servidor, P2P, búsqueda de IP (Soporta cámara IP Dahua, DVR, NVS, etc.) |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 2 |
| HDD interface | Serial ATA |
| Maximum HDD capacity | 8 TB |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| DC voltage | 12 V |
| Power consumption (typical) | 15 W |
Packaging data
| Specification | Value |
|---|---|
| Package width | 375 mm |
| Package depth | 287 mm |
| Package height | 53 mm |
| Package weight | 2.35 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| AC adapter included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
