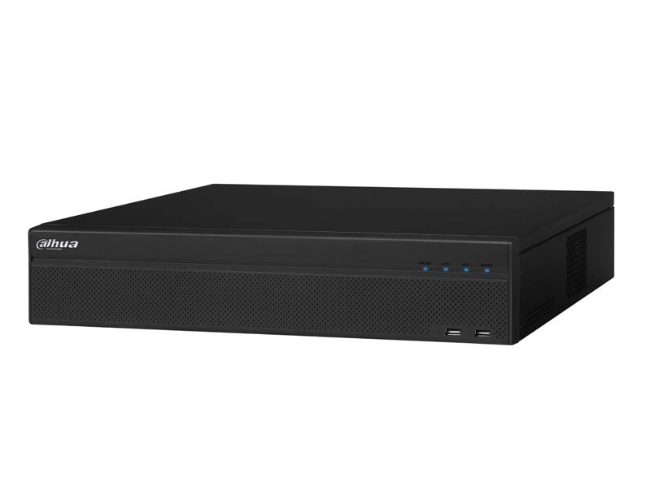

HCVR5832S-S2 digital video recorder (DVR) Black
Model HCVR5832S-S2EAN 6939554901638
41 specifications
- OSLinux
- Weight6.5 kg
- ColourBlack
- Maximum video resolution1920 x 1080 pixels
- Video input channels32 channels
- Ethernet LANYes
Overview
- OS
- Linux
- Weight
- 6.5 kg
- Colour
- Black
- Maximum video resolution
- 1920 x 1080 pixels
- Video input channels
- 32 channels
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- HCVR5832S-S2
- Part number
- HCVR5832S-S2
- EAN / UPC
- 6939554901638
- Also known as
- Dahua Technology HCVR5832S-S2 digital video recorder (DVR) Black
Specifications
41 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Video compression formats | H.264 |
| Internal | No |
| Backup function | Yes |
| Video capturing speed | 30 fps |
| Video motion detection | Yes |
| Analog signal format system | NTSC, PAL |
| Channels quantity | 32 channels |
| LED indicators | Yes |
| Operating system installed | Linux |
| PTZ control | Yes |
| Playback modes | Backup selection, Next, Pause, Play, Previous, Repeat, Repeat one, Shuffle, Slow |
| Product colour | Black |
| Video streaming | Yes |
| Rack capacity | 2U |
Ports & interfaces
| Specification | Value |
|---|---|
| Video input channels | 32 channels |
| Alarm input channels | 16 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 4 |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
| Relay outputs | 6 |
| eSATA ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet interface type | Gigabit Ethernet |
| Supported network protocols | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, SNMP, P2P |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 8 |
| HDD interface | Serial ATA |
| Maximum HDD capacity | 6 TB |
Optical drive
| Specification | Value |
|---|---|
| Optical drive included | No |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 460 mm |
| Height | 89 mm |
| Weight | 6.5 kg |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
