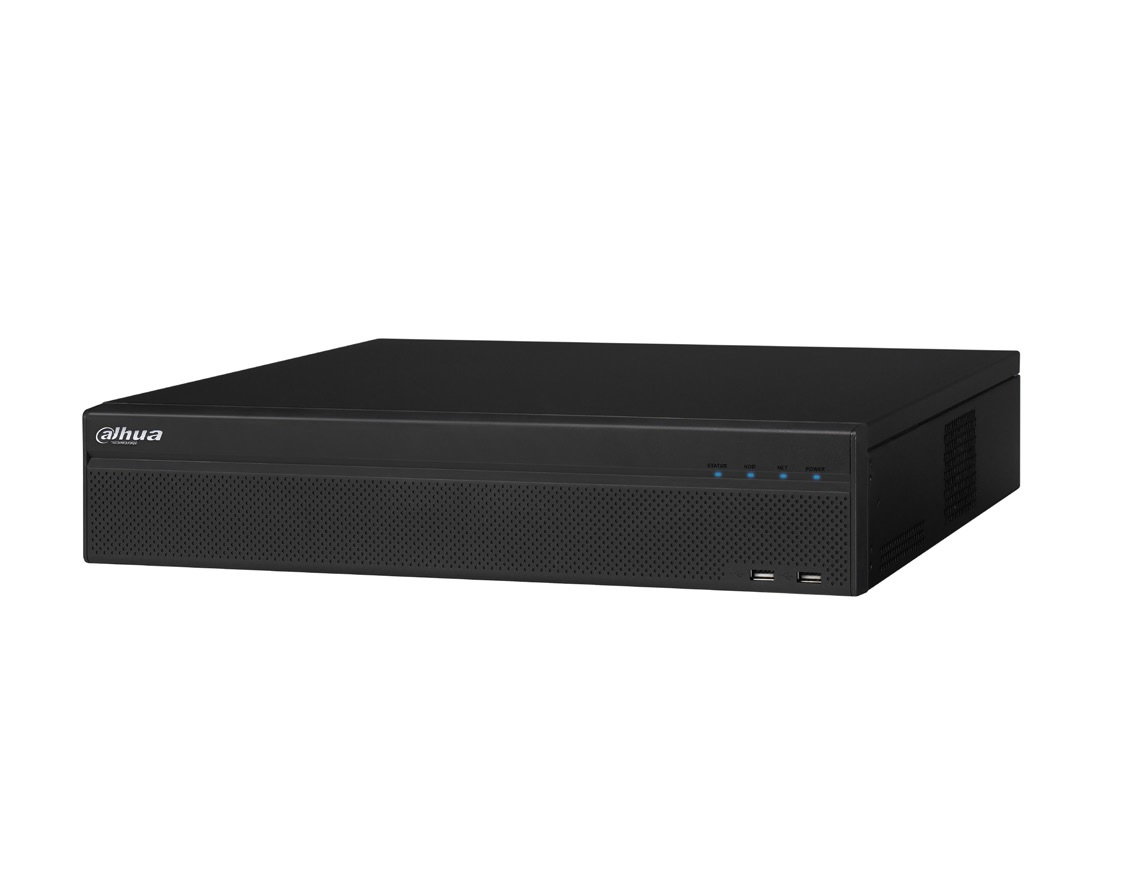

DHI-XVR5816S-X digital video recorder (DVR) Black
Model DHI-XVR5816S-X
49 specifications
- OSEmbedded LINUX
- Weight7 kg
- ColourBlack
- Maximum video resolution1920 x 1080 pixels
- Video input channels16 channels
- Ethernet LANYes
Overview
- OS
- Embedded LINUX
- Weight
- 7 kg
- Colour
- Black
- Maximum video resolution
- 1920 x 1080 pixels
- Video input channels
- 16 channels
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- DHI-XVR5816S-X
- Part number
- DHI-XVR5816S-X
- Also known as
- Dahua Technology DHI-XVR5816S-X digital video recorder (DVR) Black
Specifications
49 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Audio formats supported | AAC, G.711 A-law, G.711 μ-law, PCM |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Internal | No |
| Video capturing speed | 60 fps |
| Video loss detection | Yes |
| Video motion detection | Yes |
| Analog signal format system | NTSC, PAL |
| Channels quantity | 16 channels |
| Operating system installed | Embedded LINUX |
| PTZ control | Yes |
| Playback modes | Next, Pause, Play, Previous, Repeat, Shuffle, Stop, Zoom |
| Product colour | Black |
| RF ports quantity | 1 |
| Remote viewing | Yes |
| USB connectivity | Yes |
| Video streaming | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Video input channels | 16 channels |
| Alarm input channels | 16 |
| BNC input ports | 34 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 16 |
| Audio output | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet interface type | Gigabit Ethernet |
| Number of users | 128 user(s) |
| Supported network protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 8 |
| HDD interface | Serial ATA |
| Maximum HDD capacity | 10 TB |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 35 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 455 mm |
| Height | 95 mm |
| Weight | 7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 9.8 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
