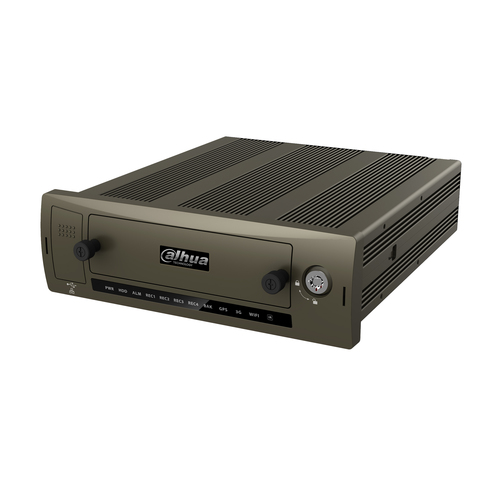

DHI-MCVR5104 Black
Model DHI-MCVR5104Part no. DHI-MCVR5104-GCW
41 specifications
- OSEmbedded LINUX
- Weight2.1 kg
- ColourBlack
- Maximum video resolution1920 x 1080 pixels
- Video input channels4 channels
- Ethernet LANYes
Overview
- OS
- Embedded LINUX
- Weight
- 2.1 kg
- Colour
- Black
- Maximum video resolution
- 1920 x 1080 pixels
- Video input channels
- 4 channels
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- DHI-MCVR5104
- Part number
- DHI-MCVR5104-GCW
- Also known as
- Dahua Technology DHI-MCVR5104 Black
Specifications
41 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Audio formats supported | G.711 |
| Video compression formats | H.264 |
| Backup function | Yes |
| Video capturing speed | 25 fps |
| Video loss detection | Yes |
| Bit rate | 8192 Kbit/s |
| Channels quantity | 4 channels |
| Compatible memory cards | MicroSD (TransFlash) |
| Event logging | Yes |
| Housing material | Steel |
| Maximum frame rate | 30 fps |
| Motion sensor | Yes |
| Operating system installed | Embedded LINUX |
| Pause function | Yes |
| Playback modes | Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop |
| Playback resolutions supported | 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 |
| Product colour | Black |
| USB connectivity | Yes |
| Certification | FCC, CE |
Ports & interfaces
| Specification | Value |
|---|---|
| Video input channels | 4 channels |
| USB 2.0 ports quantity | 2 |
| Video RCA outputs | 1 |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Fast Ethernet |
| Number of users | 128 user(s) |
| Supported network protocols | TCP/IP, UDP, DHCP, DDNS, FTP, Email, Alarm Server |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| DC voltage | 36 V |
| Power consumption (typical) | 15 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 178 mm |
| Depth | 220 mm |
| Height | 50 mm |
| Weight | 2.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| AC adapter included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 70 °C |
