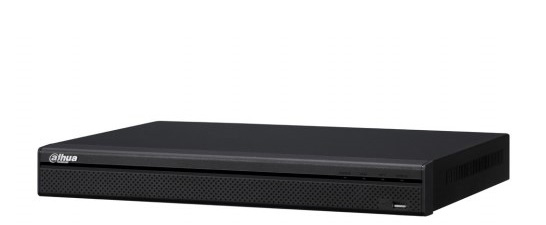

DHI-HCVR5108HS-S3 digital video recorder (DVR) Black
Model DHI-HCVR5108HS-S3
29 specifications
- OSEmbedded LINUX
- Weight750 g
- ColourBlack
- Video compression formatsH.264, H.264+
- BNC input ports8
- Ethernet LANYes
Overview
- OS
- Embedded LINUX
- Weight
- 750 g
- Colour
- Black
- Video compression formats
- H.264, H.264+
- BNC input ports
- 8
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- DHI-HCVR5108HS-S3
- Part number
- DHI-HCVR5108HS-S3
- Also known as
- Dahua Technology DHI-HCVR5108HS-S3 digital video recorder (DVR) Black
Specifications
29 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Video compression formats | H.264, H.264+ |
| Analog signal format system | NTSC, PAL |
| Operating system installed | Embedded LINUX |
| Pause function | Yes |
| Playback modes | Next, Pause, Playlist, Previous, Repeat, Shuffle, Slow |
| Playback resolutions supported | 1920×1080 1280×1024 1280×720 1024×768 |
| Product colour | Black |
| Certification | FCC: Part 15 Subpart B ICES 003 Issue 6 CE: EN 55032: 2012+AC:2013 (Class B) EN 55024 : 2010 EN 61000-3-2 : 2014 EN 50130-4: 2011 EN 61000-3-3 : 2013 UL 60950-1 CAN/CSA C22.2 No. 60950-1-07 |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC input ports | 8 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 1 |
| Audio output | 1 |
| USB 2.0 ports quantity | 2 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
| HDD interface | Serial ATA |
| Maximum HDD capacity | 8 TB |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 15 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 260 x 236 x 48 mm |
| Weight | 750 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
