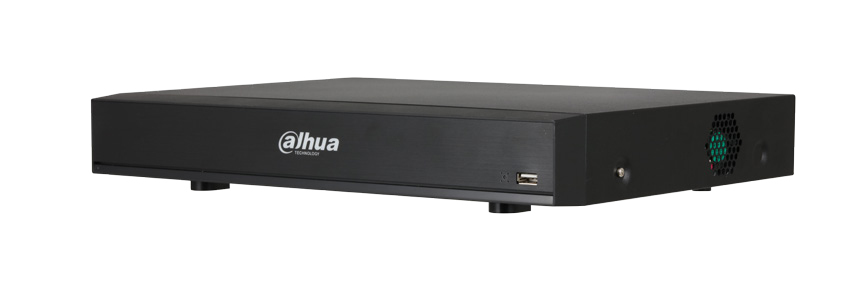

DH-XVR7108H-4K-I2 digital video recorder (DVR) Black
Model DH-XVR7108H-4K-I2EAN 6939554994609
42 specifications
- OSEmbedded LINUX
- Weight1.2 kg
- ColourBlack
- Maximum video resolution3840 x 2160 pixels
- Video input channels8 channels
- Ethernet LANYes
Overview
- OS
- Embedded LINUX
- Weight
- 1.2 kg
- Colour
- Black
- Maximum video resolution
- 3840 x 2160 pixels
- Video input channels
- 8 channels
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- DH-XVR7108H-4K-I2
- Part number
- DH-XVR7108H-4K-I2
- EAN / UPC
- 6939554994609
- Also known as
- Dahua Technology DH-XVR7108H-4K-I2 digital video recorder (DVR) Black
Specifications
42 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Backup function | Yes |
| Video motion detection | Yes |
| Analog signal format system | NTSC, PAL |
| Audio system | 2-way |
| Bit rate | 8192 Kbit/s |
| Multi-display modes | 4, 8, 9, 16 |
| Multi-display supported | Yes |
| Operating system installed | Embedded LINUX |
| PTZ control | Yes |
| Playback resolutions supported | 3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 |
| Product colour | Black |
| Rack capacity | 1U |
| Certification | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 |
Ports & interfaces
| Specification | Value |
|---|---|
| Video input channels | 8 channels |
| Alarm input channels | 8 |
| Alarm output channels | 16 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | RCA |
| Audio output | RCA |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of users | 128 user(s) |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
| HDD interface | SATA |
| Maximum HDD capacity | 10 TB |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| DC voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 325 mm |
| Depth | 257 mm |
| Height | 55 mm |
| Weight | 1.2 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
