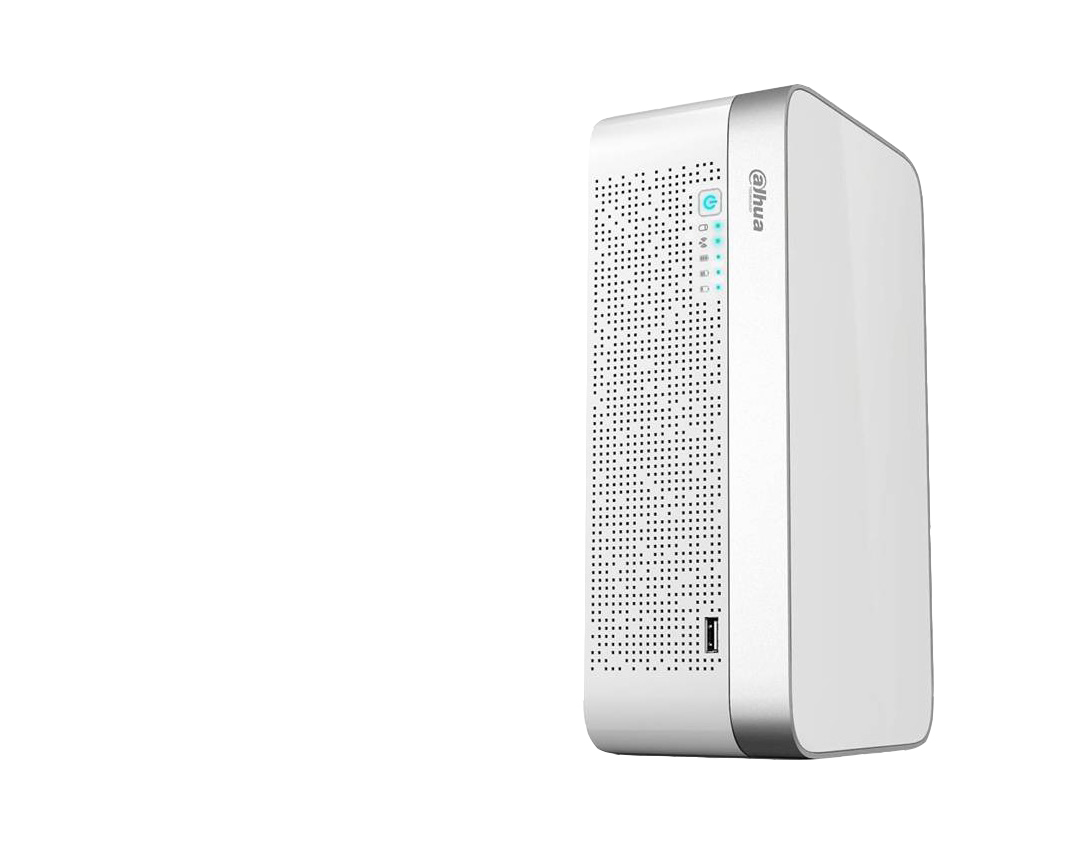

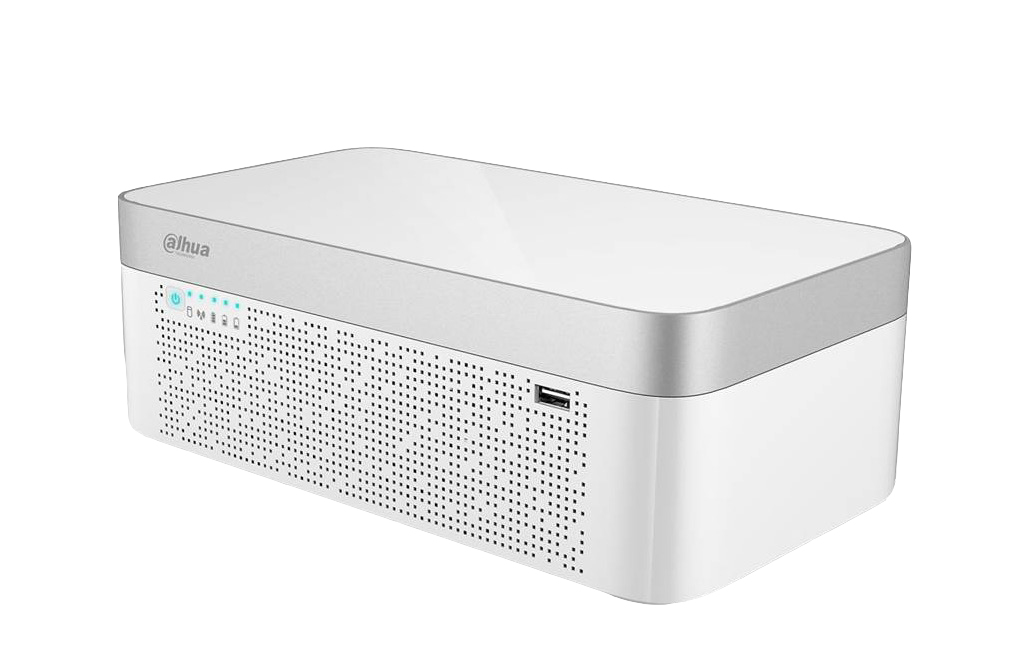

DH-XVR7108E-4KL-B-X White
Model DH-XVR7108E-4KL-B-XPart no. XVR7108E-4KL-B-X
39 specifications
- OSEmbedded LINUX
- Weight1.5 kg
- ColourWhite
- Video compression formatsH.264, H.264+, H.265, H.265+
- Video input channels8 channels
- Ethernet LANYes
Overview
- OS
- Embedded LINUX
- Weight
- 1.5 kg
- Colour
- White
- Video compression formats
- H.264, H.264+, H.265, H.265+
- Video input channels
- 8 channels
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- DH-XVR7108E-4KL-B-X
- Part numbers
- XVR7108E-4KL-B-X, DH-XVR7108E-4KL-B-X
- Also known as
- Dahua Technology DH-XVR7108E-4KL-B-X White
Specifications
39 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Backup function | Yes |
| Video motion detection | Yes |
| Bit rate | 8192 Kbit/s |
| Channels quantity | 8 channels |
| Operating system installed | Embedded LINUX |
| PTZ control | Yes |
| Playback resolutions supported | 3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 |
| Product colour | White |
| Certification | FCC: 15 B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 |
Ports & interfaces
| Specification | Value |
|---|---|
| Video input channels | 8 channels |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | RCA |
| Audio output | RCA |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Number of users | 128 user(s) |
| Supported network protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, P2P |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
| HDD interface | Serial ATA, Serial ATA II, Serial ATA III |
| Maximum HDD capacity | 10 TB |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Power
| Specification | Value |
|---|---|
| DC voltage | 12 V |
| Power consumption (max) | 28 W |
| Power consumption (typical) | 10 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 265 mm |
| Depth | 150 mm |
| Height | 87.5 mm |
| Weight | 1.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.4 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 45 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
