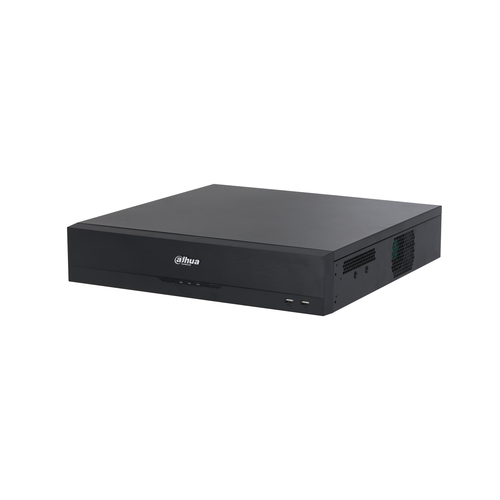

Dahua Technology DH-XVR5832S-I2 digital video recorder (DVR) Black

Dahua Technology

DH-XVR5832S-I2 digital video recorder (DVR) Black

Model DH-XVR5832S-I2EAN 6939554942433

35 specifications

Weight6.9 kg
ColourBlack
Maximum video resolution3840 x 2160 pixels
Video input channels16 channels
Ethernet LANYes
Number of HDDs supported8

See all specifications

Overview

Weight: 6.9 kg
Colour: Black
Maximum video resolution: 3840 x 2160 pixels
Video input channels: 16 channels
Ethernet LAN: Yes
Number of HDDs supported: 8

Brand: Dahua Technology
Category: Digital Video Recorders (DVR)
Model: DH-XVR5832S-I2
Part number: DH-XVR5832S-I2
EAN / UPC: 6939554942433
Also known as: Dahua Technology DH-XVR5832S-I2 digital video recorder (DVR) Black

Specifications

35 specifications in 8 groups

Performance

Specification	Value
Maximum video resolution	3840 x 2160 pixels
Audio formats supported	G.711 A-law, G.711 μ-law, PCM
Video compression formats	H.264, H.264+, H.265, H.265+
Video motion detection	Yes
Multi-display modes	4, 8, 9, 16, 25, 36
Multi-display supported	Yes
Product colour	Black
Certification	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

Ports & interfaces

Specification	Value
Video input channels	16 channels
Alarm input channels	16
BNC input ports	32
HDMI ports quantity	2
VGA (D-Sub) output ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
RS-232 ports	1
RS-485 ports	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	2
Ethernet interface type	Gigabit Ethernet
Number of users	128 user(s)

Hard drive

Specification	Value
Number of HDDs supported	8
HDD interface	SATA

Power

Specification	Value
Power supply type	AC
AC input voltage	100 - 240 V
Power consumption (typical)	22 W

Weight & dimensions

Specification	Value
Width	440 mm
Depth	463 mm
Height	95 mm
Weight	6.9 kg

Packaging data

Specification	Value
Package weight	9.5 kg

Operational conditions

Specification	Value
Operating relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	-10 - 55 °C
Storage relative humidity (H-H)	0 - 90%
Storage temperature (T-T)	-20 - 70 °C
