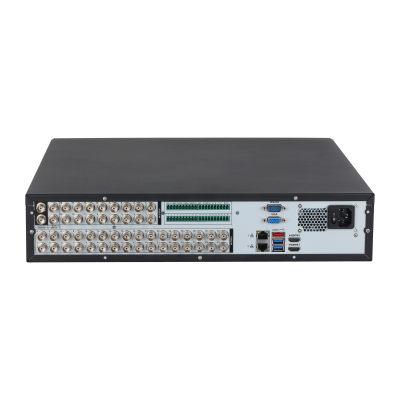

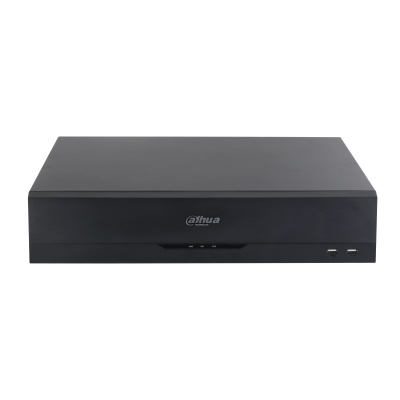

Dahua Technology DH-XVR5832S-4KL-I3 digital video recorder (DVR) Black

Dahua Technology

DH-XVR5832S-4KL-I3 digital video recorder (DVR) Black

Model DH-XVR5832S-4KL-I3EAN 6923172549563

43 specifications

OSEmbedded LINUX
Weight7 kg
ColourBlack
Maximum video resolution3840 x 2160 pixels
Alarm input channels16
Ethernet LANYes

See all specifications

Overview

OS: Embedded LINUX
Weight: 7 kg
Colour: Black
Maximum video resolution: 3840 x 2160 pixels
Alarm input channels: 16
Ethernet LAN: Yes

Brand: Dahua Technology
Category: Digital Video Recorders (DVR)
Model: DH-XVR5832S-4KL-I3
Part number: DH-XVR5832S-4KL-I3
EAN / UPC: 6923172549563
Also known as: Dahua Technology DH-XVR5832S-4KL-I3 digital video recorder (DVR) Black

Specifications

43 specifications in 8 groups

Performance

Specification	Value
Maximum video resolution	3840 x 2160 pixels
Audio formats supported	G.711 A-law, G.711 μ-law, PCM
Video compression formats	H.264, H.264+, H.265, H.265+
Backup function	Yes
Video motion detection	Yes
Bit rate	6144 Kbit/s
Channels quantity	32 channels
Dual stream support	Yes
Multi-display modes	1, 4, 8, 16, 25, 36
Multi-display supported	Yes
Operating system installed	Embedded LINUX
Product colour	Black
Rack capacity	2U

Ports & interfaces

Specification	Value
Alarm input channels	16
Alarm output channels	6
BNC input ports	32
HDMI ports quantity	2
VGA (D-Sub) output ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
RS-232 ports	1
RS-485 ports	1
eSATA ports quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	2
Ethernet interface type	Gigabit Ethernet
Supported network protocols	HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P

Hard drive

Specification	Value
Number of HDDs supported	8
HDD interface	SATA
Maximum HDD capacity	128 TB

Power

Specification	Value
Power supply type	AC
AC input voltage	100 - 240 V
Power consumption (typical)	30 W

Weight & dimensions

Specification	Value
Width	439.9 mm
Depth	463 mm
Height	94.9 mm
Weight	7 kg

Packaging data

Specification	Value
Package width	570 mm
Package depth	570 mm
Package height	226 mm
Package weight	9.6 kg

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-10 - 55 °C
