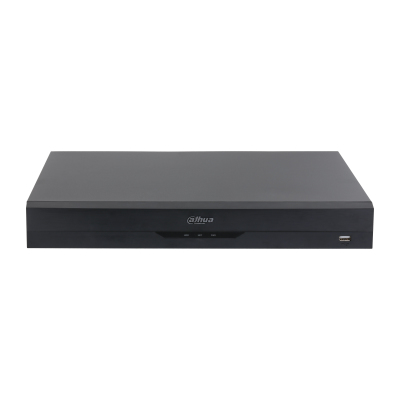

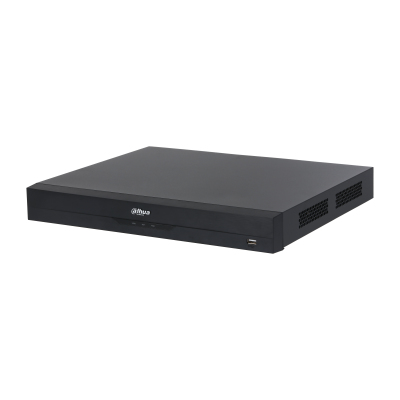

DH-XVR5232AN-4KL-I3 digital video recorder (DVR) Black
Model DH-XVR5232AN-4KL-I3EAN 6923172549518
41 specifications
- OSEmbedded LINUX
- Weight2.5 kg
- ColourBlack
- Maximum video resolution3840 x 2160 pixels
- BNC input ports32
- Ethernet LANYes
Overview
- OS
- Embedded LINUX
- Weight
- 2.5 kg
- Colour
- Black
- Maximum video resolution
- 3840 x 2160 pixels
- BNC input ports
- 32
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- DH-XVR5232AN-4KL-I3
- Part number
- DH-XVR5232AN-4KL-I3
- EAN / UPC
- 6923172549518
- Also known as
- Dahua Technology DH-XVR5232AN-4KL-I3 digital video recorder (DVR) Black
Specifications
41 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Audio formats supported | G.711 A-law, G.711 μ-law, PCM |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Backup function | Yes |
| Video motion detection | Yes |
| Bit rate | 6144 Kbit/s |
| Channels quantity | 32 channels |
| Dual stream support | Yes |
| Multi-display modes | 1, 4, 8, 9, 16, 25, 36 |
| Multi-display supported | Yes |
| Operating system installed | Embedded LINUX |
| Playback modes | Event, General, Instant, Smart, Tag |
| Product colour | Black |
| Rack capacity | 1U |

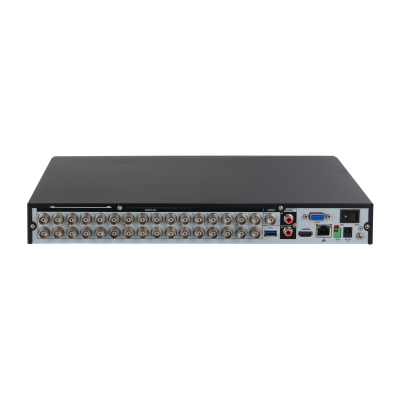

Ports & interfaces
| Specification | Value |
|---|---|
| BNC input ports | 32 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Video RCA outputs | 1 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 2 |
| HDD interface | SATA |
| Maximum HDD capacity | 16 TB |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| DC voltage | 12 V |
| Power consumption (typical) | 32 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 375 mm |
| Depth | 334.4 mm |
| Height | 53 mm |
| Weight | 2.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 449 mm |
| Package depth | 170 mm |
| Package height | 421 mm |
| Package weight | 4.1 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
