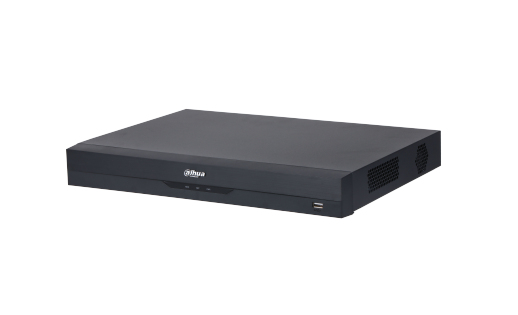

DH-XVR5216A-4KL-I3/T digital video recorder (DVR) Black
Model DH-XVR5216A-4KL-I3/T
46 specifications
- OSEmbedded LINUX
- Weight1.8 kg
- ColourBlack
- Maximum video resolution3840 x 2160 pixels
- Alarm input channels16
- Ethernet LANYes
Overview
- OS
- Embedded LINUX
- Weight
- 1.8 kg
- Colour
- Black
- Maximum video resolution
- 3840 x 2160 pixels
- Alarm input channels
- 16
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- DH-XVR5216A-4KL-I3/T
- Part number
- DH-XVR5216A-4KL-I3/T
- Also known as
- Dahua Technology DH-XVR5216A-4KL-I3/T digital video recorder (DVR) Black
Specifications
46 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Audio formats supported | G.711 A-law, G.711 μ-law, PCM |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Video capturing speed | 30 fps |
| Video capturing speed (NTSC) | 30 fps |
| Video capturing speed (PAL) | 25 fps |
| Analog signal format system | NTSC, PAL |
| Bit rate | 64 Kbit/s |
| Channels quantity | 16 channels |
| Input bandwidth | 128 Mbit/s |
| Operating system installed | Embedded LINUX |
| Product colour | Black |
| Total bandwidth | 128 Mbit/s |
| Rack capacity | 1U |
| Certification | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
Ports & interfaces
| Specification | Value |
|---|---|
| Alarm input channels | 16 |
| Alarm output channels | 3 |
| BNC input ports | 16 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 4-channel RCA 16-channel BNC (Coaxial Audio) |
| Audio output | 1-channel RCA |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Video RCA outputs | 1 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Supported network protocols | HTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 2 |
| HDD interface | SATA |
| Maximum HDD capacity | 32 TB |
| Supported HDD interfaces | Serial ATA |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| DC voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 375 mm |
| Depth | 289.6 mm |
| Height | 53 mm |
| Weight | 1.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 427 mm |
| Package depth | 137 mm |
| Package height | 356 mm |
| Package weight | 2.99 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
