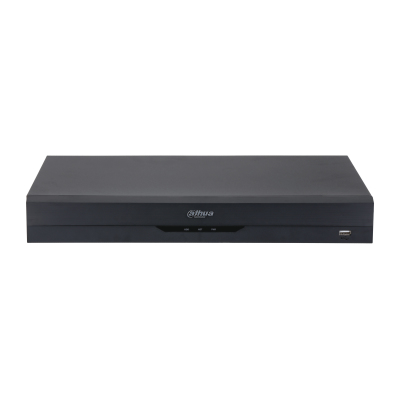

Dahua Technology DH-XVR5208AN-4KL-I3 digital video recorder (DVR) Black

Dahua Technology

DH-XVR5208AN-4KL-I3 digital video recorder (DVR) Black

Model DH-XVR5208AN-4KL-I3EAN 6923172535207

40 specifications

Weight1.59 kg
ColourBlack
Maximum video resolution3840 x 2160 pixels
BNC input ports8
Ethernet LANYes
Number of HDDs supported2

See all specifications

Overview

Weight: 1.59 kg
Colour: Black
Maximum video resolution: 3840 x 2160 pixels
BNC input ports: 8
Ethernet LAN: Yes
Number of HDDs supported: 2

Brand: Dahua Technology
Category: Digital Video Recorders (DVR)
Model: DH-XVR5208AN-4KL-I3
Part number: DH-XVR5208AN-4KL-I3
EAN / UPC: 6923172535207
Also known as: Dahua Technology DH-XVR5208AN-4KL-I3 digital video recorder (DVR) Black

Specifications

40 specifications in 8 groups

Performance

Specification	Value
Maximum video resolution	3840 x 2160 pixels
Audio formats supported	G.711 A-law, G.711 μ-law, PCM
Video compression formats	H.264, H.264+, H.265, H.265+
Video capturing speed (NTSC)	30 fps
Video capturing speed (PAL)	25 fps
Video loss detection	Yes
Video motion detection	Yes
Channels quantity	8 channels
Maximum frame rate	60 fps
Product colour	Black
USB connectivity	Yes
Rack capacity	1U
Certification	CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B

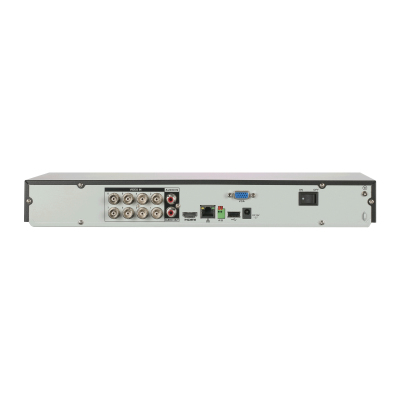

Ports & interfaces

Specification	Value
BNC input ports	8
HDMI ports quantity	1
VGA (D-Sub) output ports	1
Audio input	1
Audio output	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
RS-485 ports	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet interface type	Gigabit Ethernet
Supported network protocols	HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P

Hard drive

Specification	Value
Number of HDDs supported	2
HDD interface	SATA

Power

Specification	Value
Power supply type	DC
DC voltage	12 V
Power consumption (typical)	10 W

Weight & dimensions

Specification	Value
Width	375 mm
Depth	289 mm
Height	53 mm
Weight	1.59 kg

Packaging data

Specification	Value
Package width	141 mm
Package depth	433 mm
Package height	366 mm
Package weight	2.76 kg

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-10 - 55 °C
