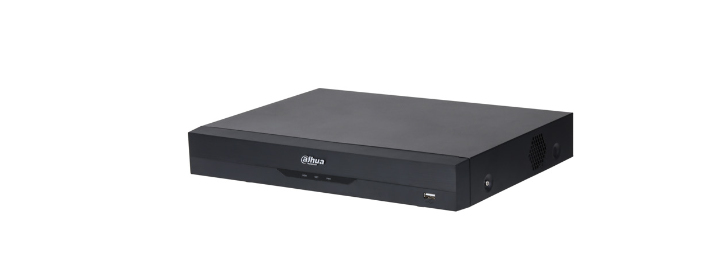

Dahua Technology DH-XVR5108H-4KL-I3 Black

Dahua Technology

DH-XVR5108H-4KL-I3 Black

Model DH-XVR5108H-4KL-I3Part no. XVR5108H-4KL-I3EAN 6923172535184

39 specifications

OSEmbedded LINUX
Weight1.2 kg
ColourBlack
Maximum video resolution1920 x 1080 pixels
Video input channels8 channels
Ethernet LANYes

See all specifications

Overview

OS: Embedded LINUX
Weight: 1.2 kg
Colour: Black
Maximum video resolution: 1920 x 1080 pixels
Video input channels: 8 channels
Ethernet LAN: Yes

Brand: Dahua Technology
Category: Digital Video Recorders (DVR)
Model: DH-XVR5108H-4KL-I3
Part number: XVR5108H-4KL-I3
EAN / UPC: 6923172535184
Also known as: Dahua Technology DH-XVR5108H-4KL-I3 Black

Specifications

39 specifications in 9 groups

Performance

Specification	Value
Maximum video resolution	1920 x 1080 pixels
Audio formats supported	G.711 A-law, G.711 μ-law, PCM
Video compression formats	H.264, H.264+, H.265, H.265+
Backup function	Yes
Video loss detection	Yes
Video motion detection	Yes
Operating system installed	Embedded LINUX
Playback modes	Event, General, Instant, Smart, Tag
Product colour	Black
Certification	CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B

Ports & interfaces

Specification	Value
Video input channels	8 channels
HDMI ports quantity	1
VGA (D-Sub) output ports	1
Audio input	1
Audio output	1
USB 2.0 ports quantity	2
Video in	8
RS-485 ports	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet interface type	Gigabit Ethernet
Supported network protocols	HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P

Hard drive

Specification	Value
Number of HDDs supported	1
HDD interface	SATA
Maximum HDD capacity	16 TB

Processor

Specification	Value
Built-in processor	Yes

Power

Specification	Value
Power supply type	DC
DC voltage	12 V
Power consumption (typical)	10 W

Weight & dimensions

Specification	Value
Width	325 mm
Depth	257.2 mm
Height	55 mm
Weight	1.2 kg

Packaging data

Specification	Value
Package width	372 mm
Package depth	117 mm
Package height	308 mm
Package weight	1.9 kg

Operational conditions

Specification	Value
Operating relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	-10 - 55 °C
