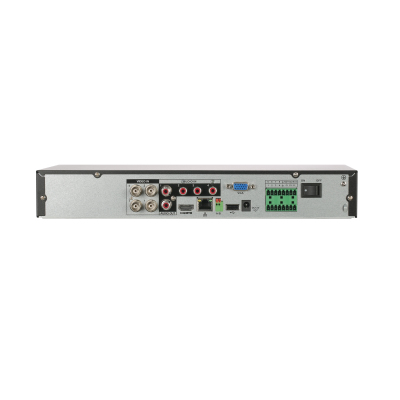

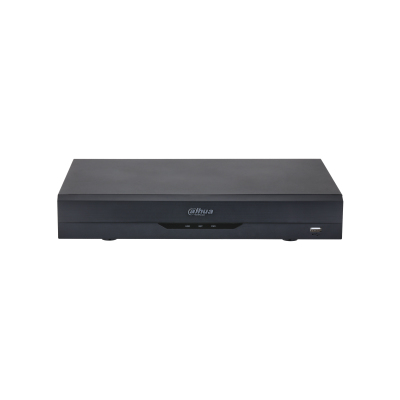

DH-XVR5104HE-I2 digital video recorder (DVR) Black

Model DH-XVR5104HE-I2EAN 6939554947940

48 specifications

Overview

Brand: Dahua Technology
Category: Digital Video Recorders (DVR)
Model: DH-XVR5104HE-I2
Part number: DH-XVR5104HE-I2
EAN / UPC: 6939554947940
Also known as: Dahua Technology DH-XVR5104HE-I2 digital video recorder (DVR) Black

48 specifications in 9 groups

Specification	Value
Maximum video resolution	1920 x 1080 pixels
Audio formats supported	G.711 A-law, G.711 μ-law, PCM
Video compression formats	H.264, H.264+, H.265, H.265+
Internal	No
Backup function	Yes
Video capturing speed	30 fps
Video capturing speed (NTSC)	30 fps
Video capturing speed (PAL)	30 fps
Video motion detection	Yes
Analog signal format system	NTSC, PAL
Audio streaming	Yes
Bit rate	6144 Kbit/s
Channels quantity	4 channels
Dual stream support	Yes
Operating system installed	Embedded LINUX
PTZ control	Yes
Playback modes	Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop
Product colour	Black
USB connectivity	Yes
Video streaming	Yes
Rack capacity	1U
Certification	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

Specification	Value
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Number of users	128 user(s)
Supported network protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

Specification	Value
Built-in processor	Yes

Specification	Value
Package weight	180 g

Specification	Value
Operating relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	-10 - 55 °C
Storage relative humidity (H-H)	0 - 90%
Storage temperature (T-T)	-20 - 70 °C
